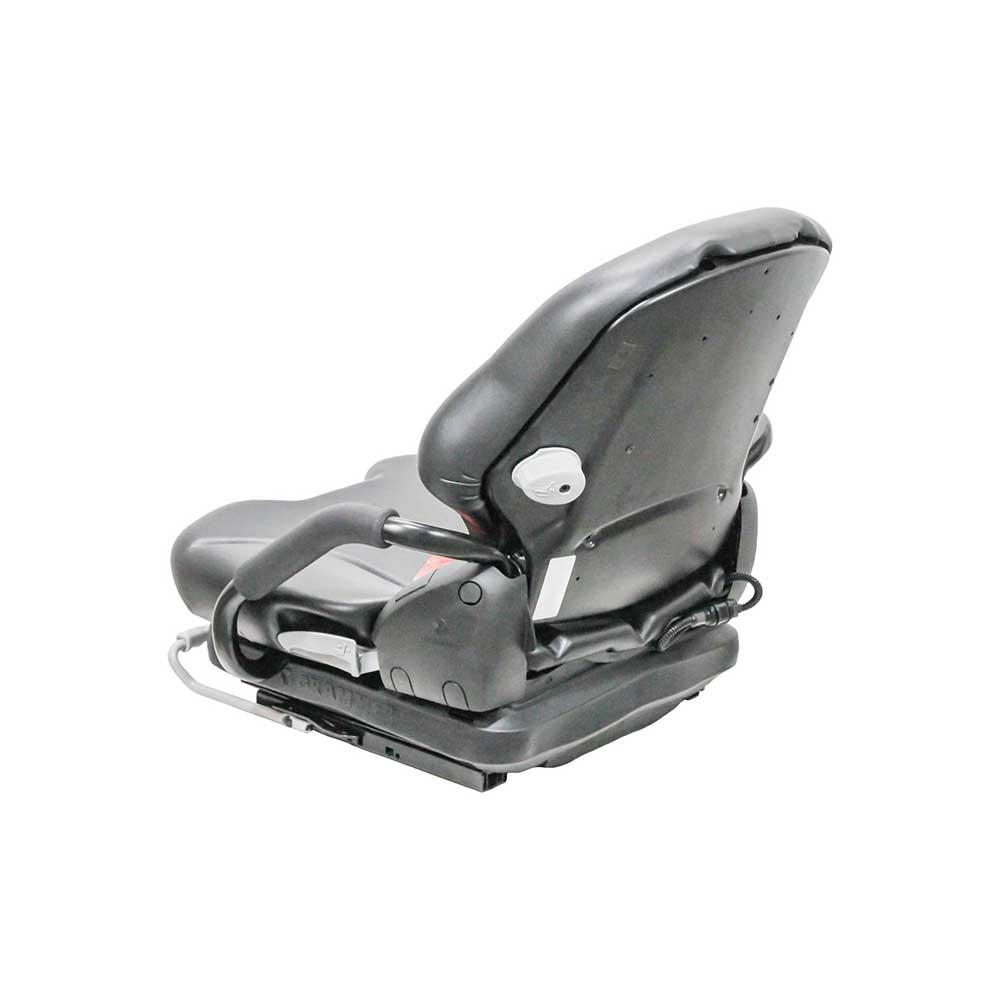

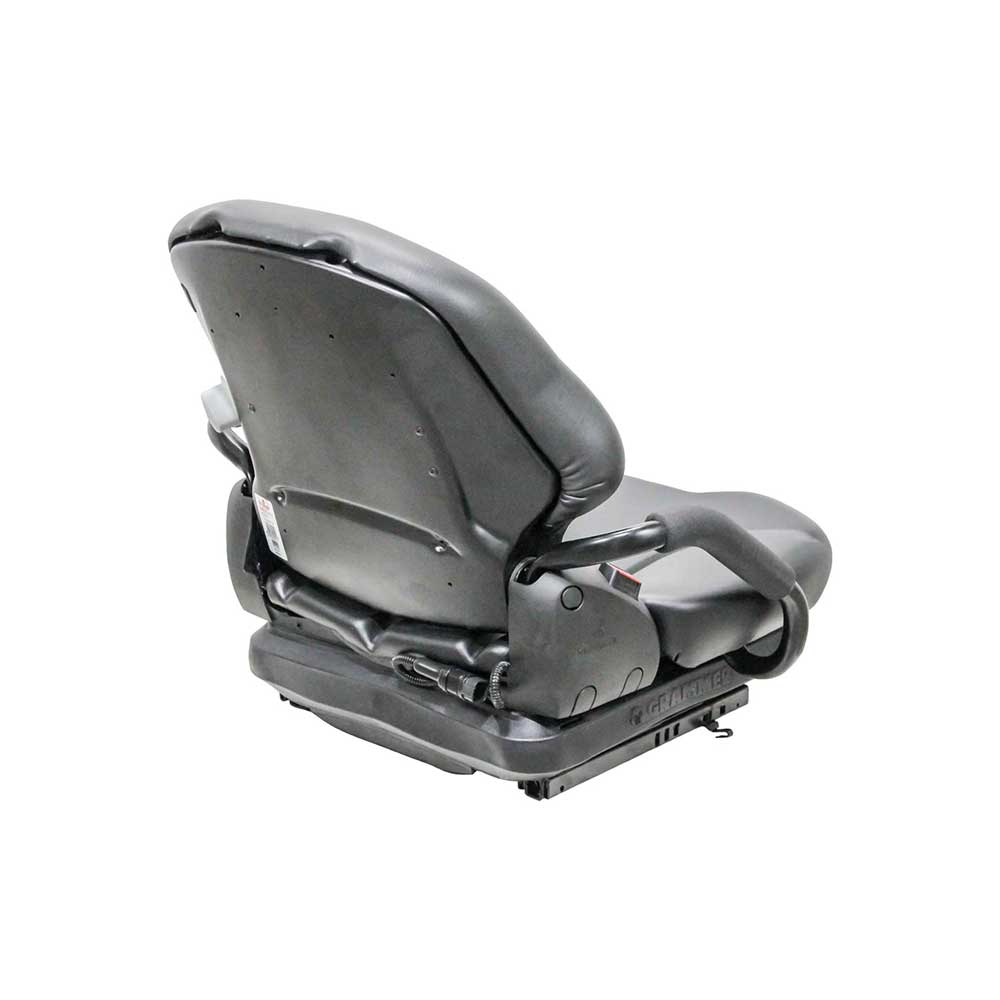

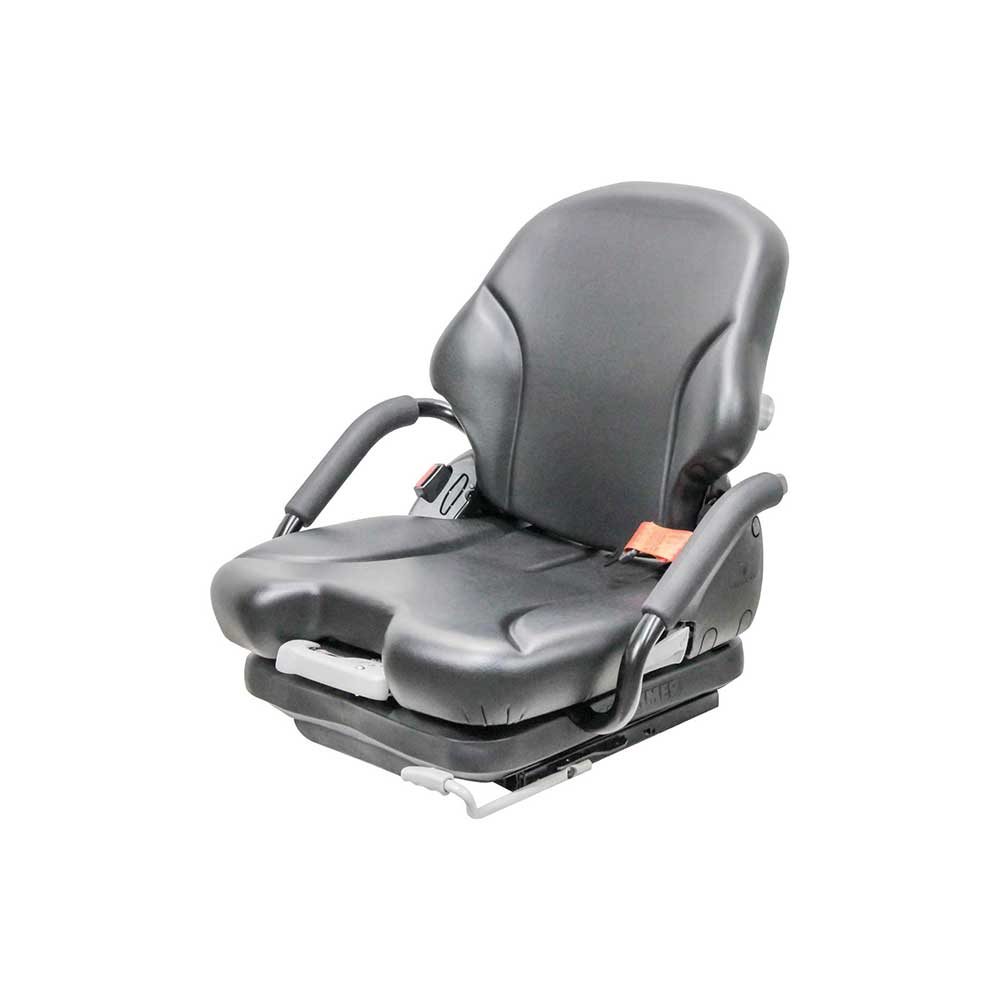

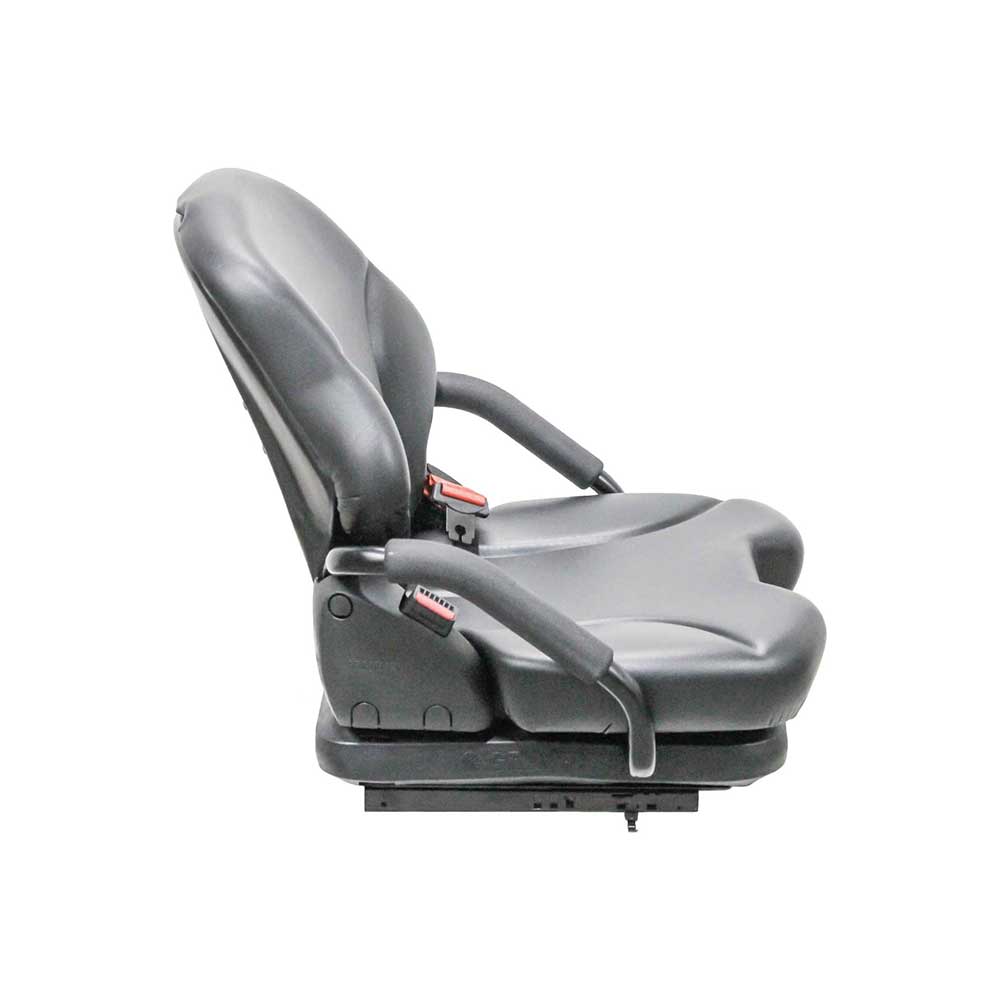

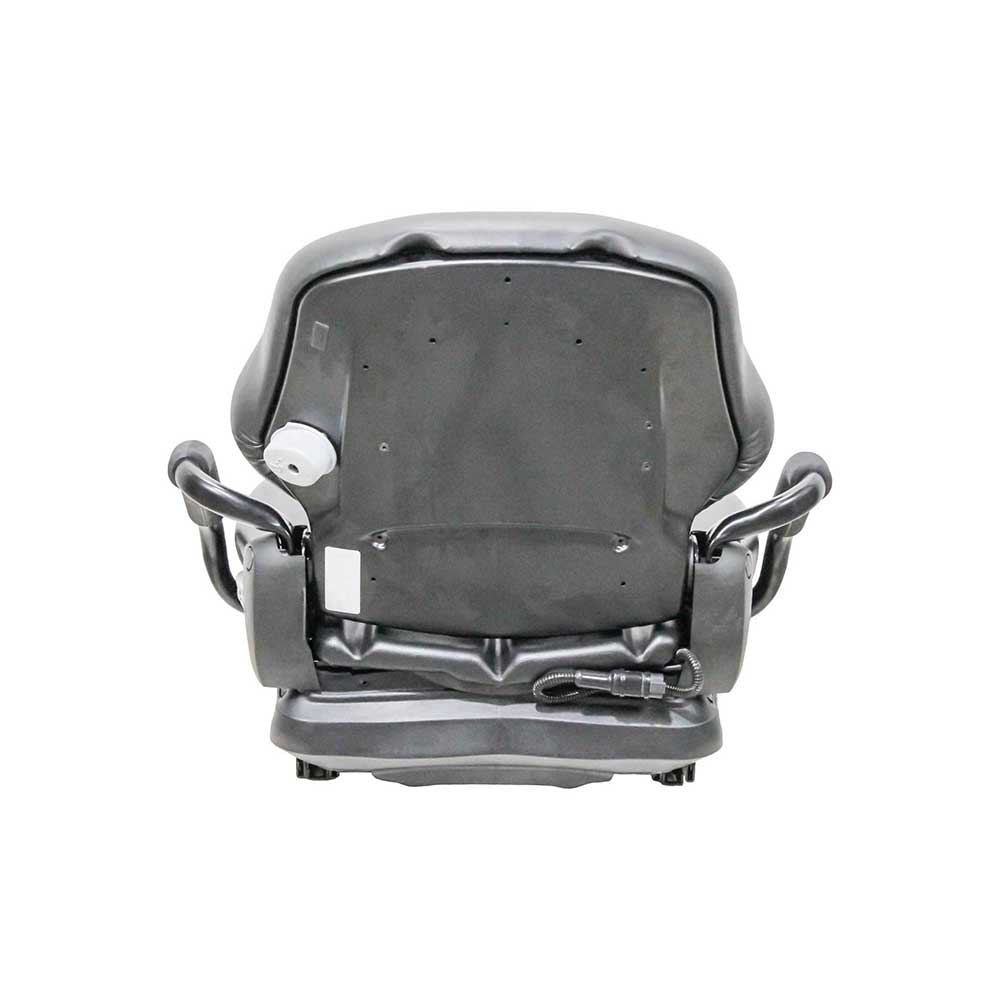

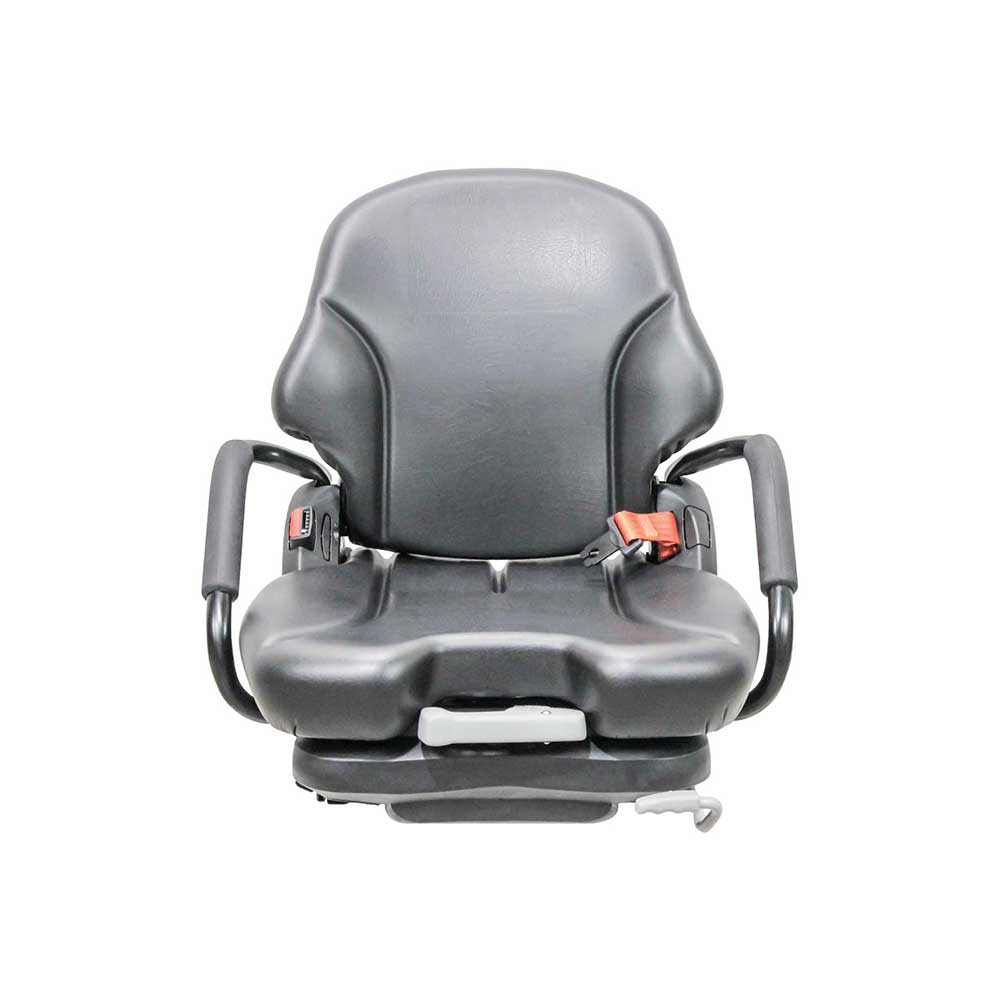

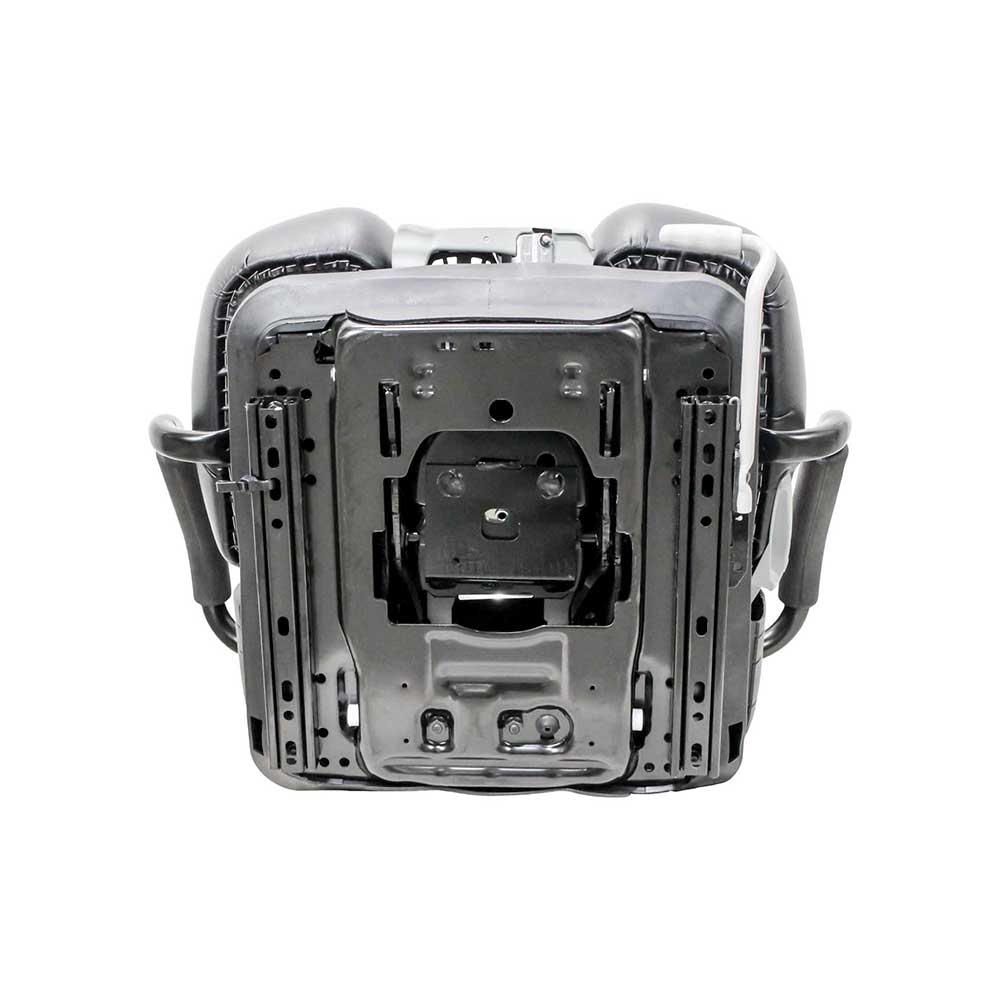

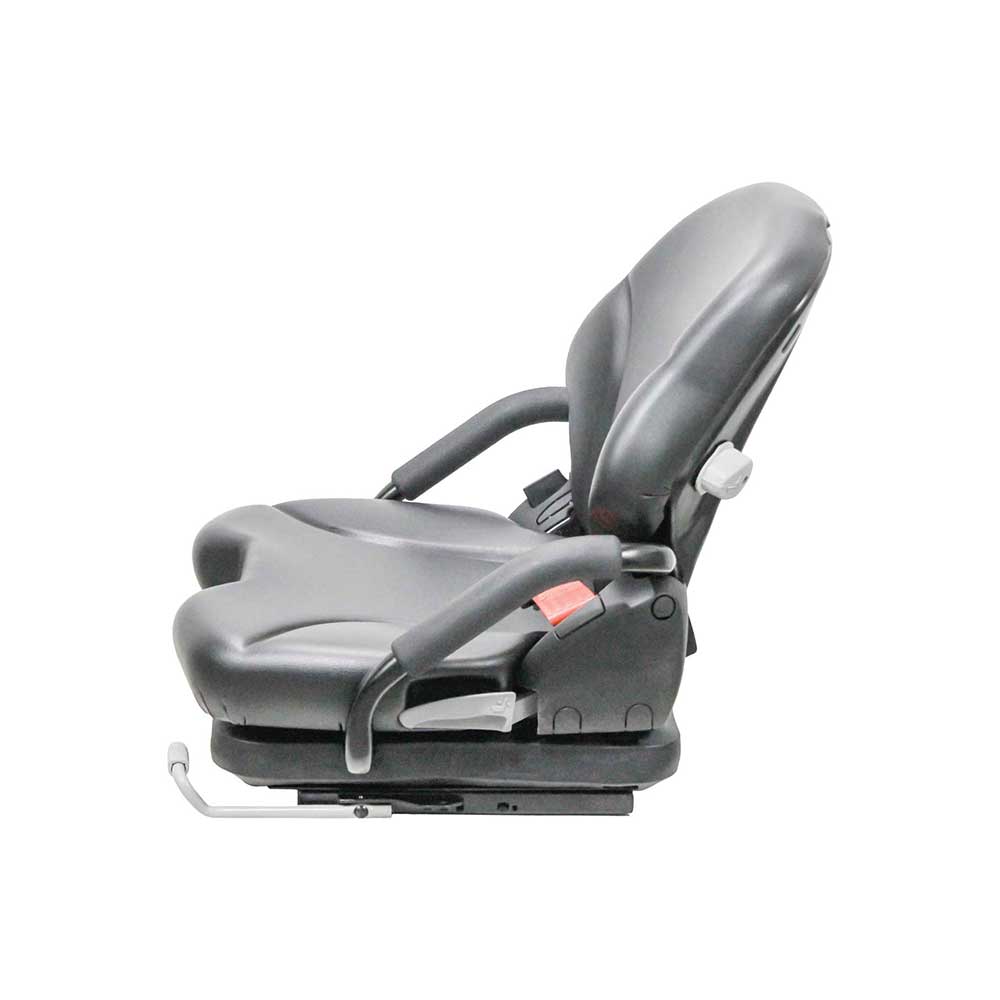

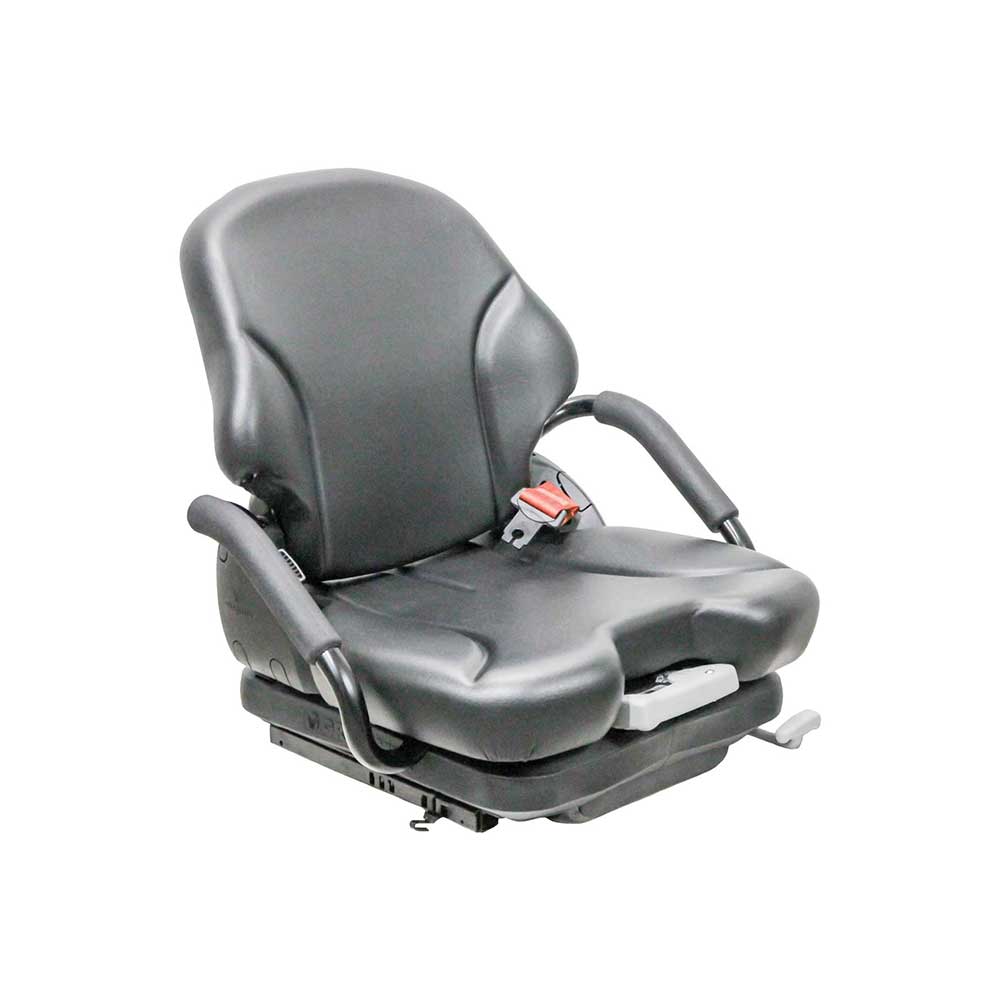

Grammer | MSG65/531 | Forklift Seat & Mechanical Suspension | Toyota | OPS | Black Vinyl | 8648
$1,015.00
Regular price
$1,015.00
Sale price
$1,015.00
Regular price
Unit price
per
Shipping calculated at checkout.
8648
Couldn't load pickup availability
The Grammer mechanical suspension seat is a high-quality, vibration-reducing seat designed for maximum comfort. It is a direct fit for Toyota® 7F-8F-THDC Series forklifts. This drop-in replacement offers forklift operators a superior, customizable ride, improving productivity and reducing fatigue during long shifts.
Features + Benefits
- Durable black vinyl covering
- Low-profile mechanical suspension with suspension travel of 2.36 in.
- Vacuum formed narrow seat cushion of 18.5 in.
- Asymmetrical backrest shape to make driving backwards more comfortable
- Adjustable backrest in increments of 2.5° adds comfort and versatility
- Mechanical lumbar support to help prevent lower back pain
- Hip restraint guards for safety and to maintain seating position
- Orange retractable seat belt with switch for added safety
- Slide rails provide fore/aft adjustment
- Weight indicator with adjustment of 110 - 375 lbs.
- Comes standard with operator presence switch
- Includes necessary 12.91 in. rail spacing with ball slide rail mounting for direct fit
- Replacement seat for Grammer MSG65/531
Applications
- 7FBCU Series: 7FBCU35, 7FBCU45, 7FBCU55
- 8FBC Series: 8FBC15U, 8FBC18U, 8FBCU20, 8FBCU25, 8FBCU28, 8FBCU30, 8FBCU32, 8FBCHU25, 8FBCU20-COMP, 8FBCU25-COMP
- 8FBE Series: 8FBE15U, 8FBE18U, 8FBE20U, 8FBEH18U, 8FBES15U
- 8FBM Series: 8FBM40T, 8FBM45T, 8FBM50T
- 8FDU Series: 8FDU15, 8FDU18, 8FDU20, 8FDU25, 8FDU30, 8FDU32
- 8FGU Series: 8FGU15, 8FGU18, 8FGU20, 8FGU25, 8FGU30, 8FGU32
- 8FD-U Series: 8FD35U, 8FD40U, 8FD45U, 8FD50U
- 8FG-U Series: 8FG35U, 8FG40U, 8FG45U, 8FG50U
- 8FGCU Series: 8FGCU15, 8FGCU18, 8FGCU20, 8FGCU25, 8FGCU30, 8FGCU32, 8FGCSU20
- 8FGC-U Series: 8FGC35U, 8FGC45U, 8FGC55U, 8FGC60U, 8FGC70U, 8FGC35U-BCS, 8FGC45U-BCS, 8FGC55U-BCS, 8FGC55U-PRS
- 05-8FBM Series: 05-8FBM20T, 05-8FBM25T, 05-8FBM30T, 05-8FBM35T, 05-8FBMK25T, 05-8FBMK30T
- THDC Series: THDC1800-24, THDC1800-36, THDC2200-24, THDC2200B-24
Specifications
| Equipment Type | Mechanical Suspension Seat |
|---|---|
| Adjustable Backrest | Yes |
| Color | Black |
| Country of Origin | Made in the USA (with US and imported components) |
| Frame | Steel |
| Material | Vinyl |
| Operator Presence Switch | Included |
| Restraints | Hip Restraints |
| Seat Belt | Yes |
| Slide Rails | Yes |
