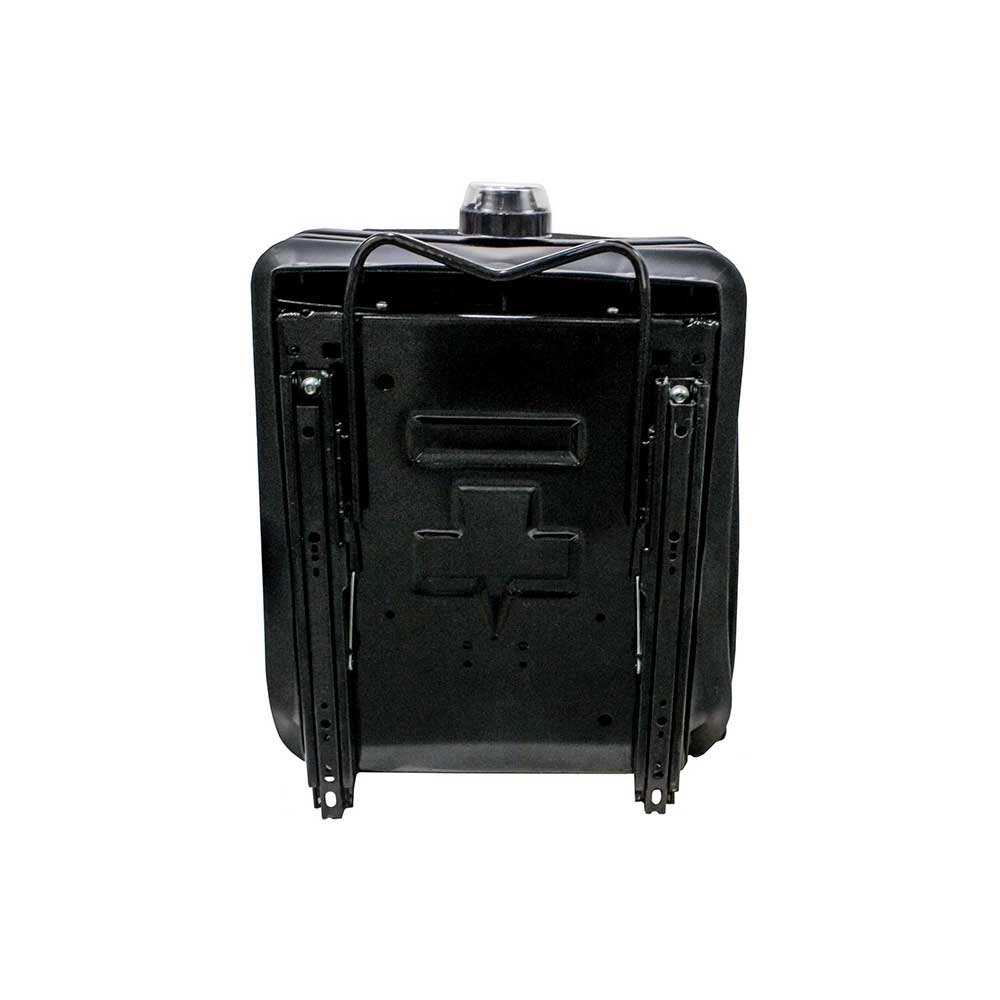

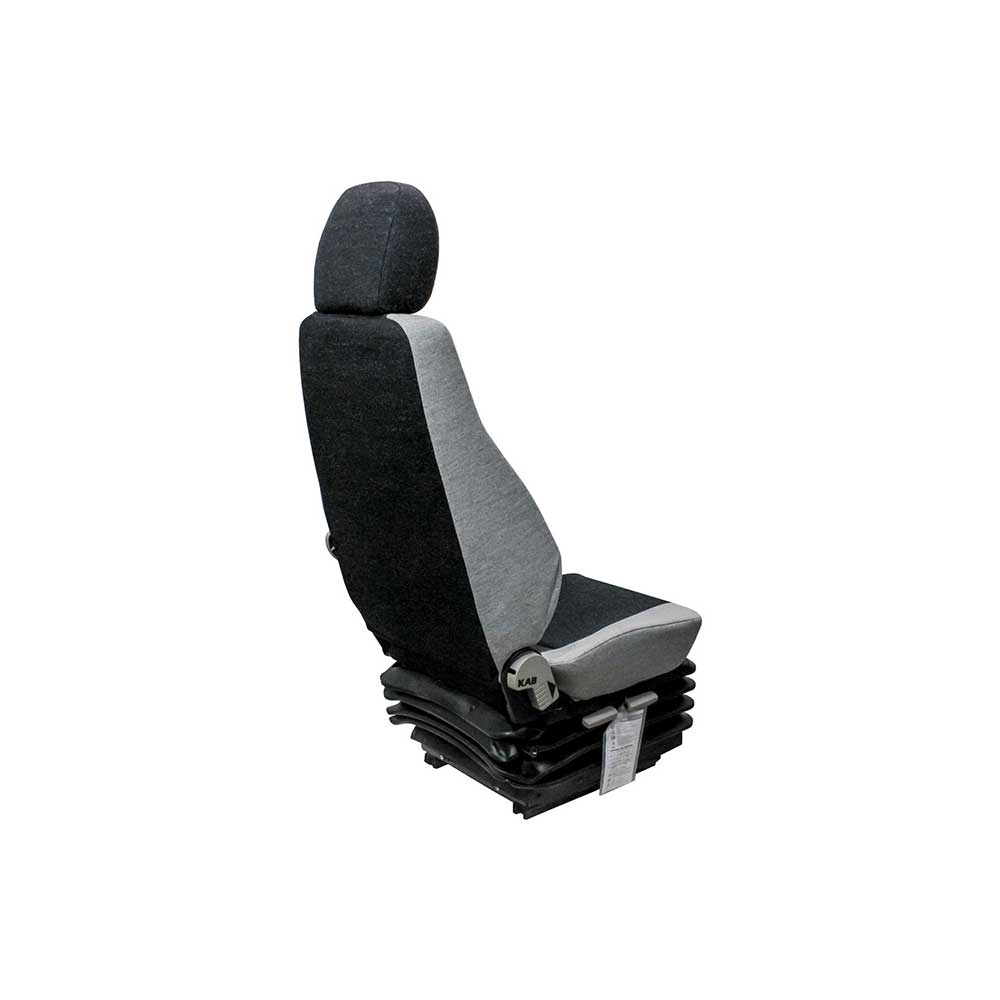

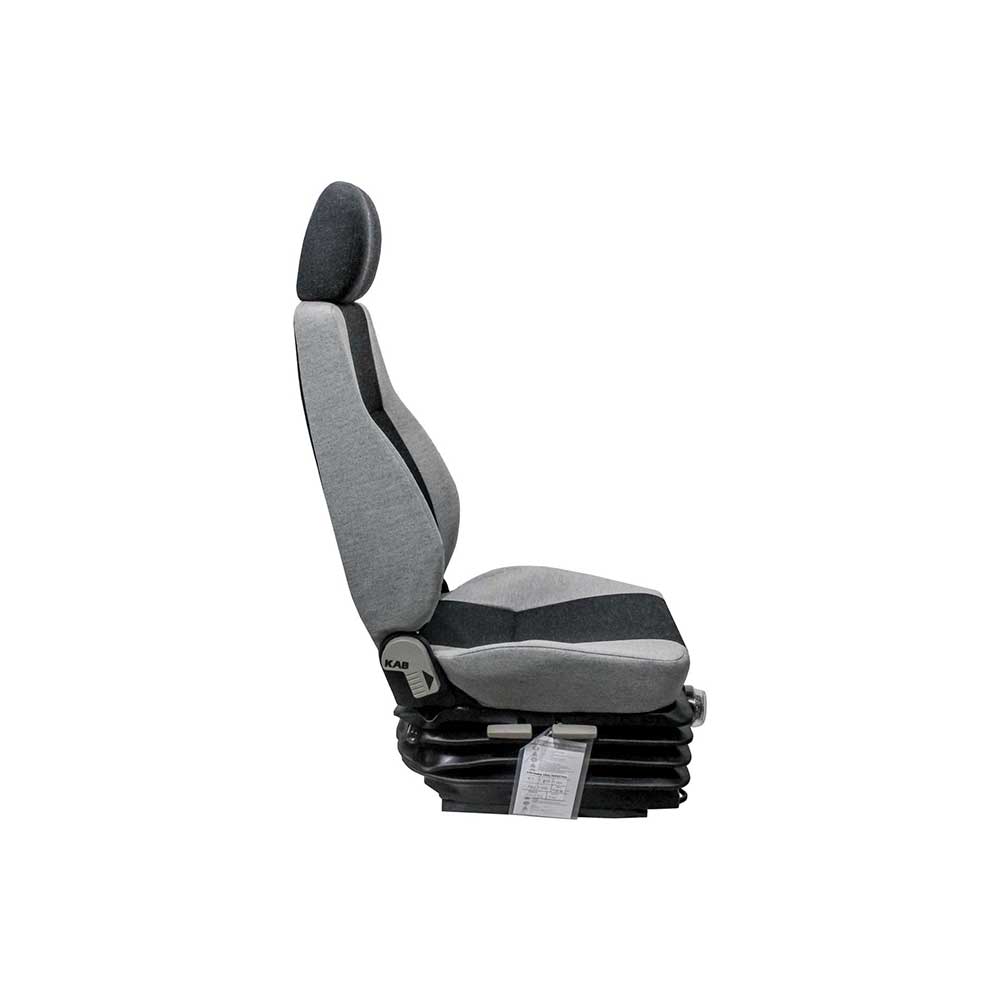

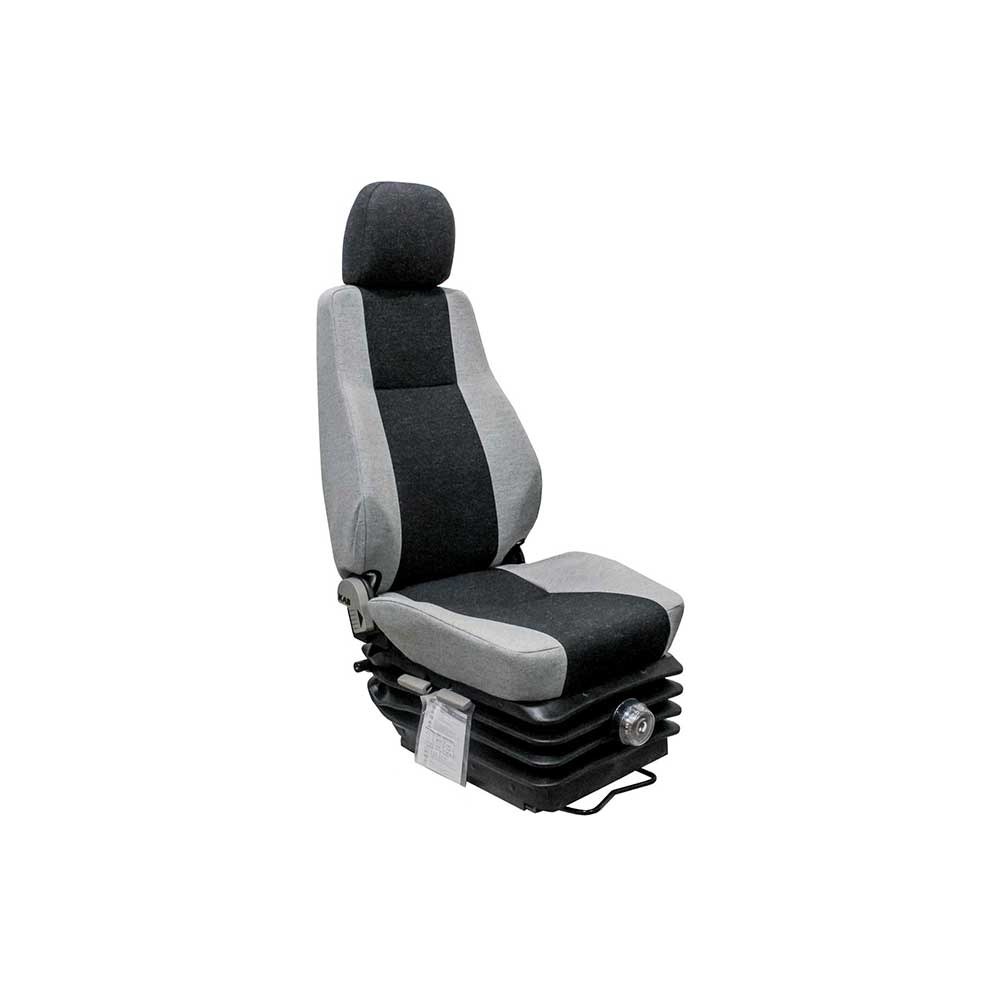

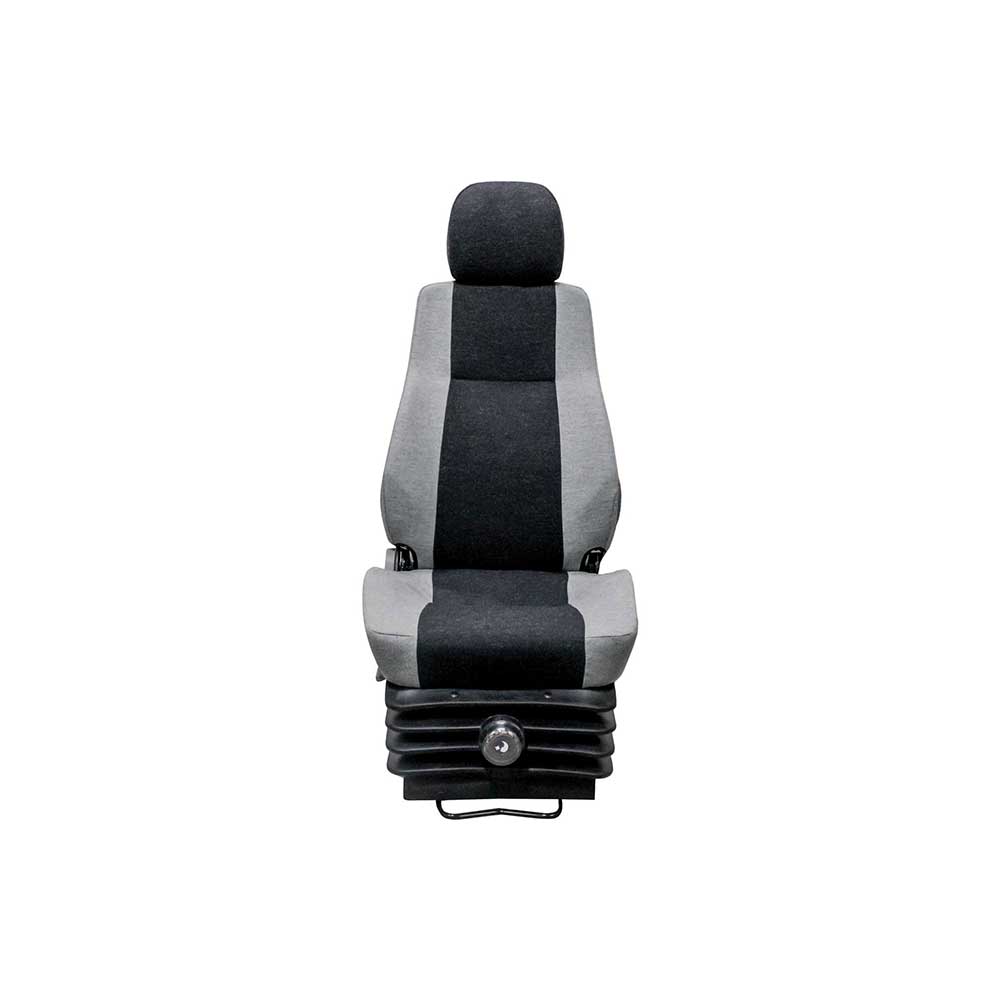

KAB | 514 | Seat & Mechanical Suspension Kit | Caterpillar Construction Equipment | 6863

Stay comfortable through long hours on the job with this KAB mechanical suspension seat kit. This high-quality replacement seat and suspension kit is designed to fit select Caterpillar® construction equipment requiring a 15 in. mounting pattern. This seat delivers reliable support and vibration reduction in the most demanding work environments.

Features + Benefits

• Heavy-duty multi-gray Cordura fabric covering
• 2-spring mechanical suspension
• Backrest angle adjustment for individual fit
• Contoured foam cushions to ensure operator comfort
• 5-position lumbar support to help prevent lower back pain
• 110 - 265 lb. weight adjustment
• 4 in. vertical suspension stroke
• Seat height and tilt adjustment of 2.5 in. on right side of suspension
• Adjustable slide rails with 8 in. of travel in 0.4 in. increments
• Durable suspension cover to keep components free of dirt and dust
• Vibration performance meets ISO 7096 specifications
• Seat meets EM1, EM3, EM4, EM5, EM6 and EM8 specifications
• Kit includes: Uni Pro 1020/KAB 514 mechanical suspension seat, KAB CAT adapter plate, mounting hardware, and installation instructions for easy setup

Applications

• Excavators: 312L, 320L, 322L, 325L, 330L
• Integrated Tool Carriers: IT14G, IT18B, IT18F, IT24F, IT28B, IT28F, IT28G, IT38F, IT38G, IT62G, IT62H
• Motor Graders: 12G, 12H, 14G, 14H, 14M, 16G, 16H, 16M, 24H, 24M, 120G, 120H, 120M, 135H, 140G, 140H, 140M, 143H, 160H, 160M, 163H
• Pipelayers: 561N, 572R, 583R, 583T, 587R, 587T
• Rigid Dump Trucks (Off Highway): 769D, 770, 771D, 772, 773D, 773E, 773F, 775D, 775E, 775F, 776C, 776D, 777C, 777D, 777F, 784B, 784C, 785B, 785C, 789B, 789C, 793B, 793C, 793D, 797, 797B
• Scrapers: 613G, 615G, 621B, 621E, 621G, 623B, 623E, 623G, 627B, 627E, 627G, 631C, 631D, 631E, 631G, 633G, 637C, 637D, 637E, 637G, 651E, 651G, 657E, 657G
• Track Dozers: D3G, D4G, D5G, D5M, D5N, D6H, D6M, D6N, D6R, D7H, D7R, D8N, D8R, D8T, D9N, D9R, D9T, D10N, D10R, D10T, D11N, D11R, D11T
• Wheel Loaders: 914G, 924, 924F, 924G, 928F, 928G, 928H, 930G, 936E, 936F, 938F, 938G, 938H, 950E, 950F, 950G, 950H, 962G, 962H, 966C, 966D, 966E, 966F, 966G, 966H, 970F, 972G, 972H, 980C, 980F, 980G, 980H, 988B, 988F, 988G, 988H, 990, 990H, 992C, 992D, 992G, 994F, 994G
