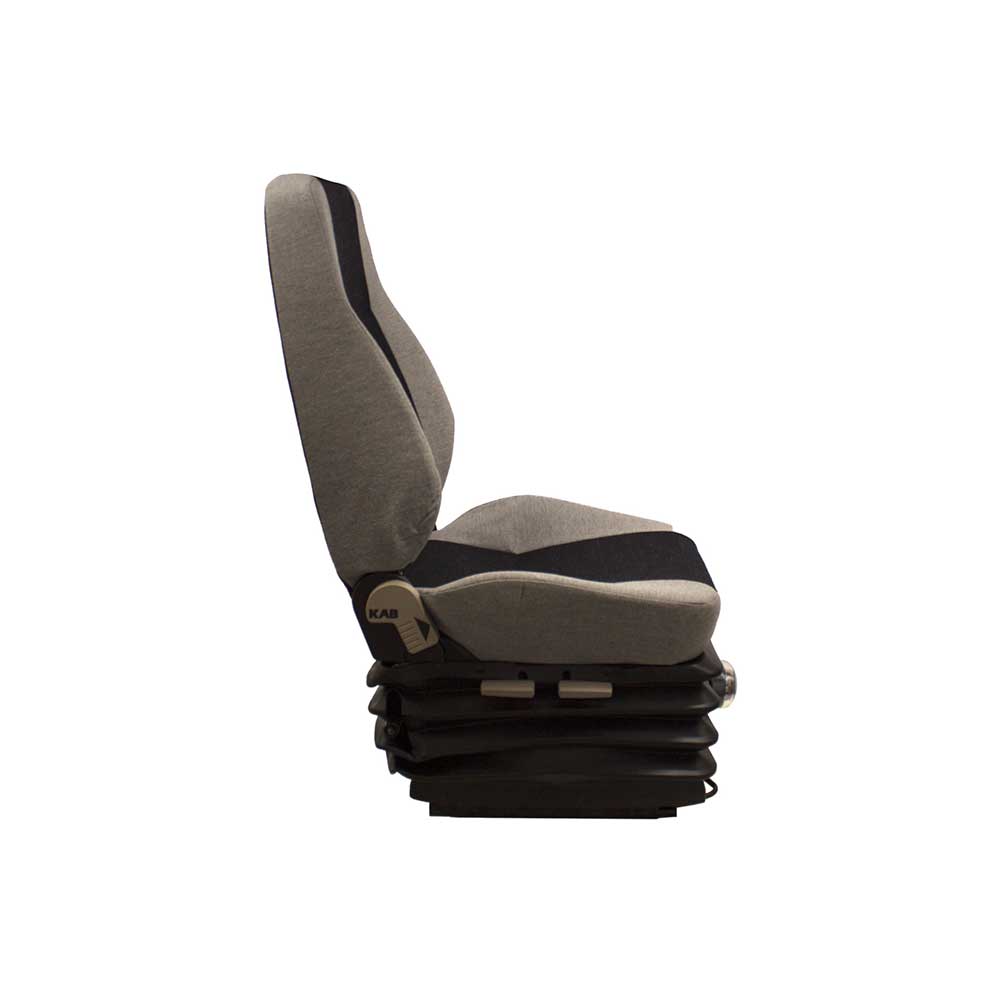

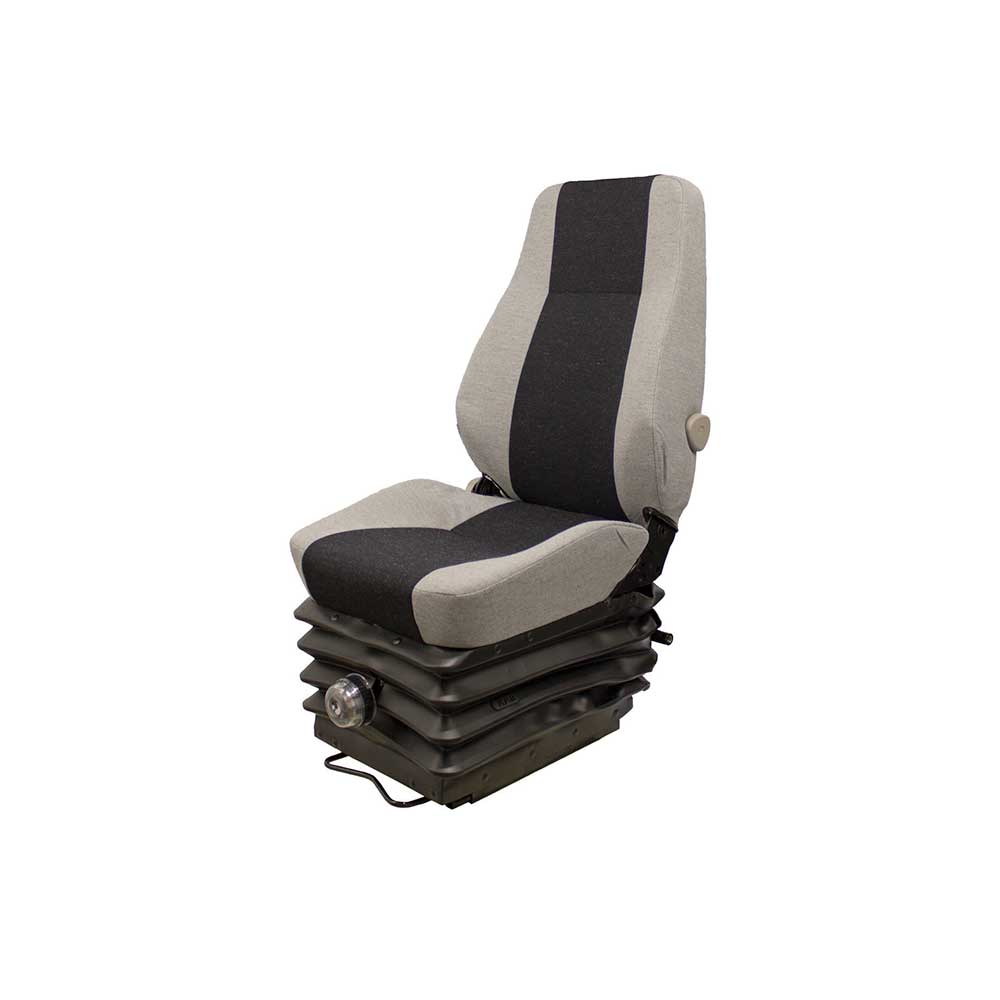

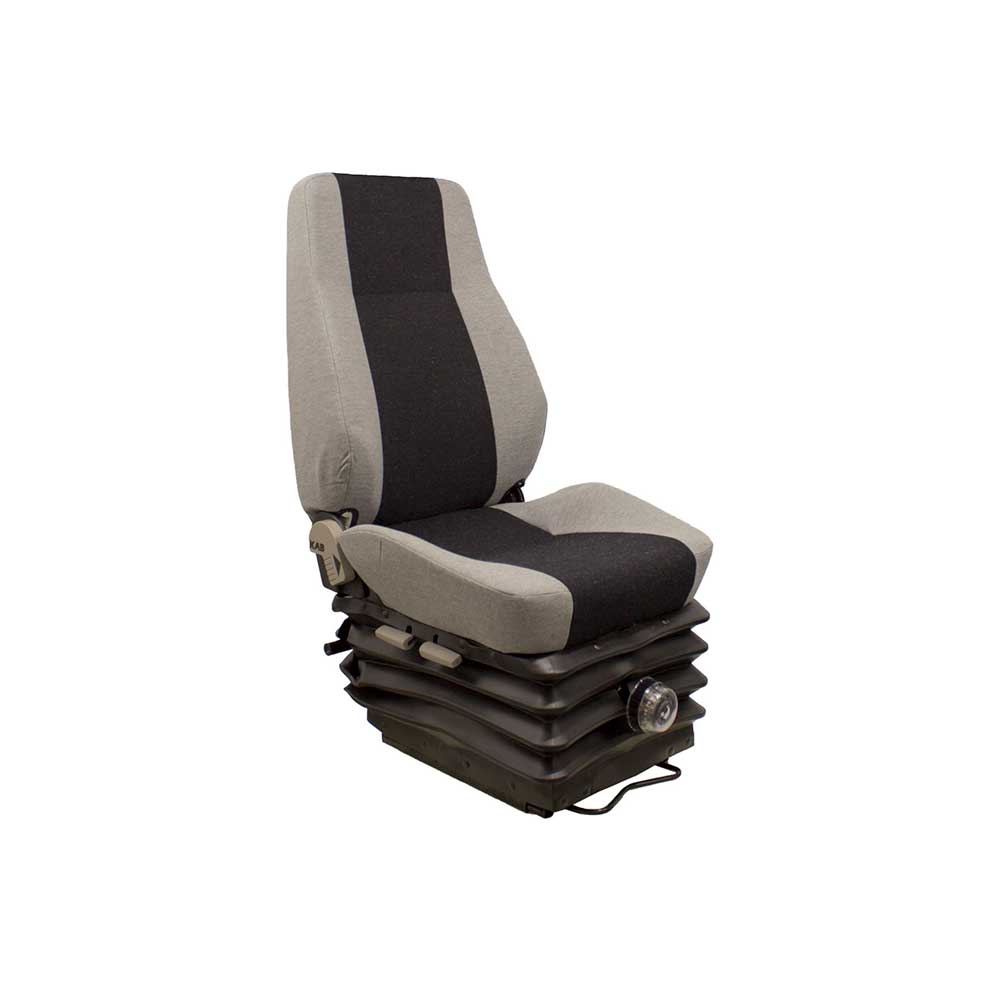

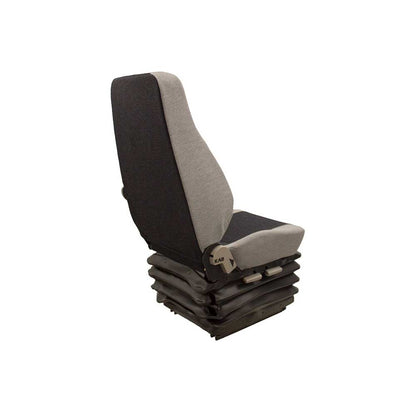

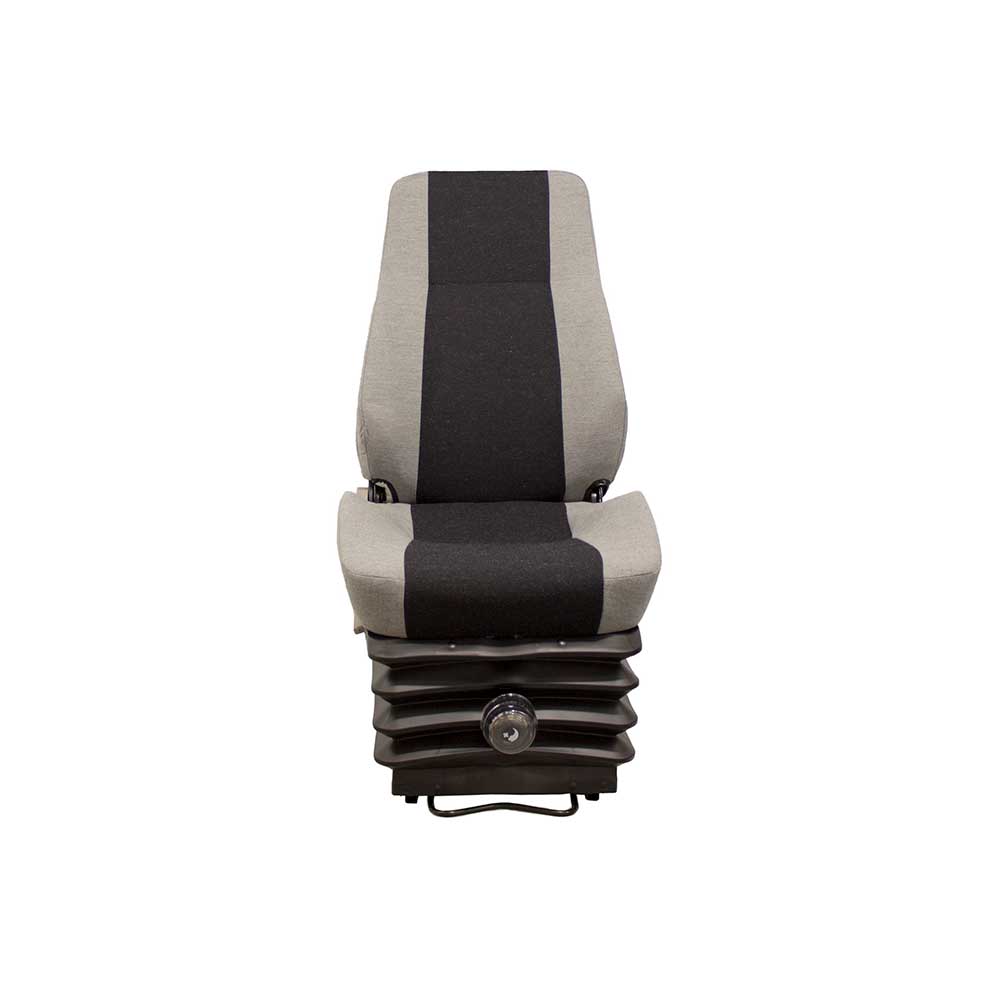

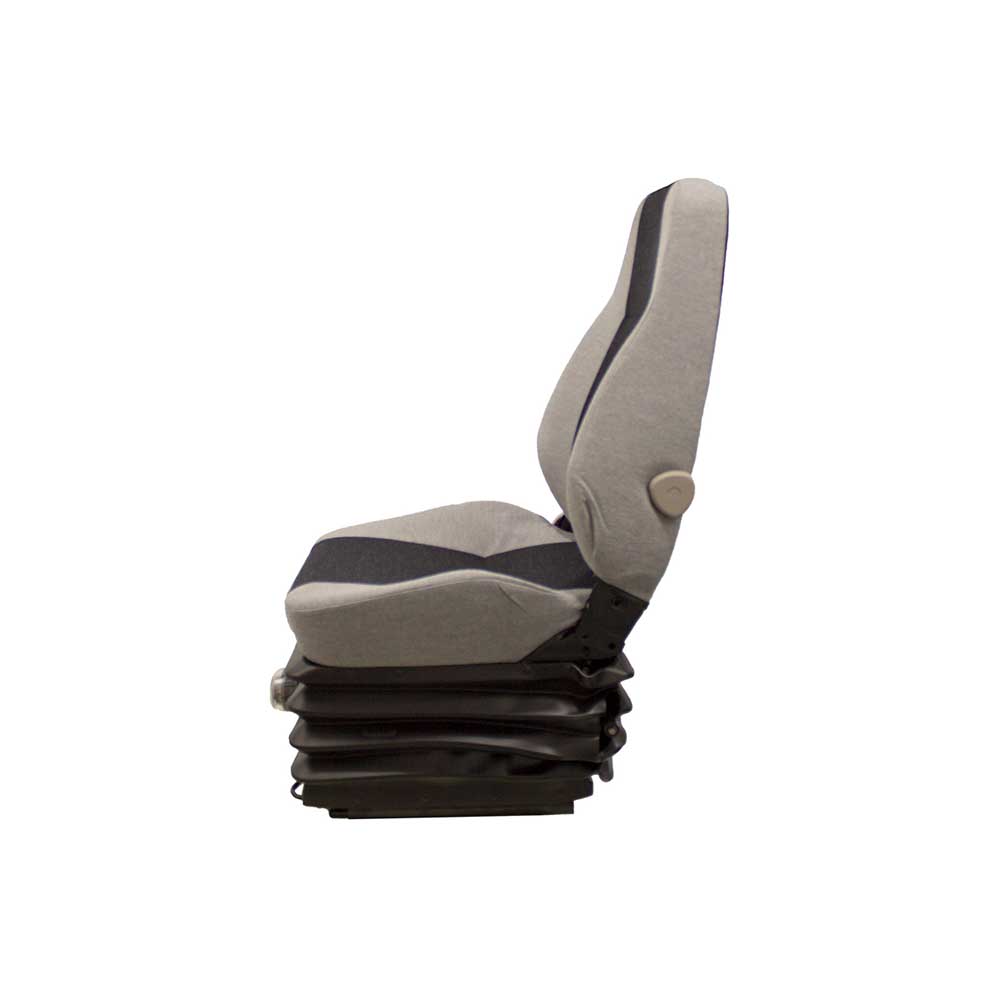

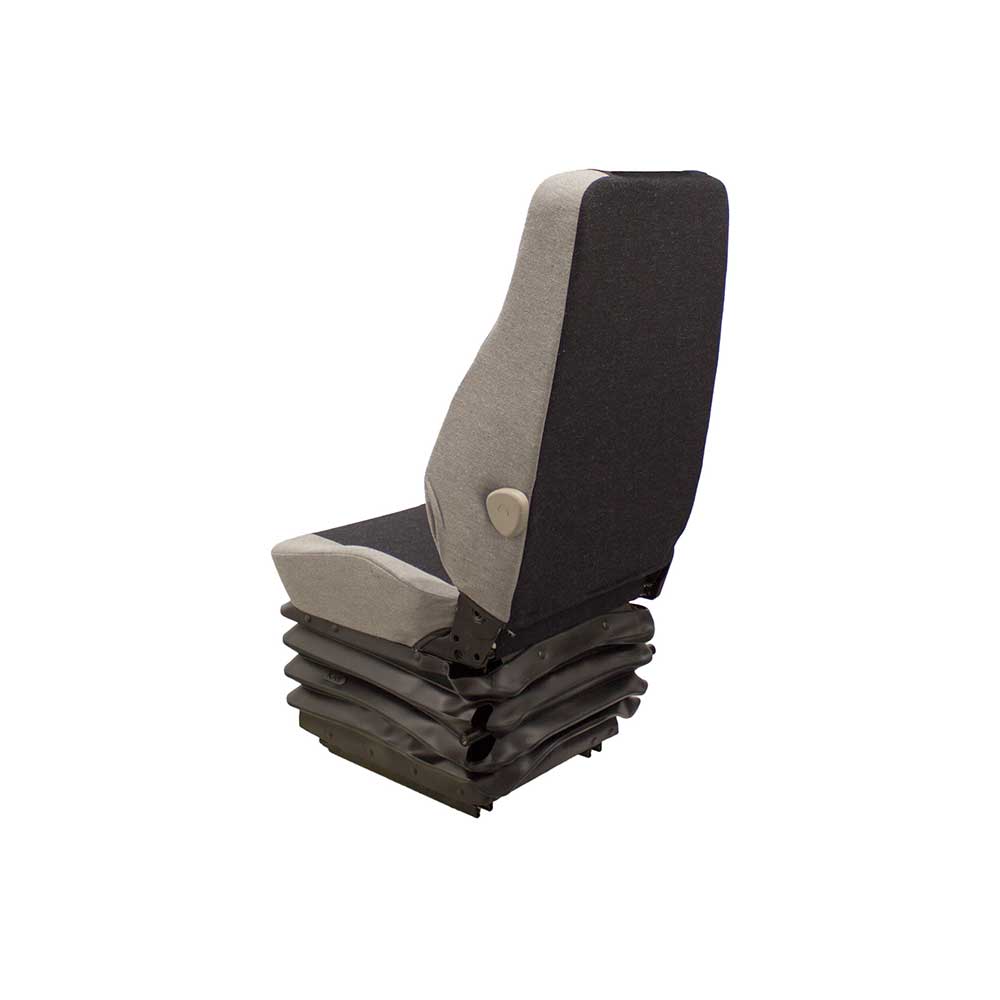

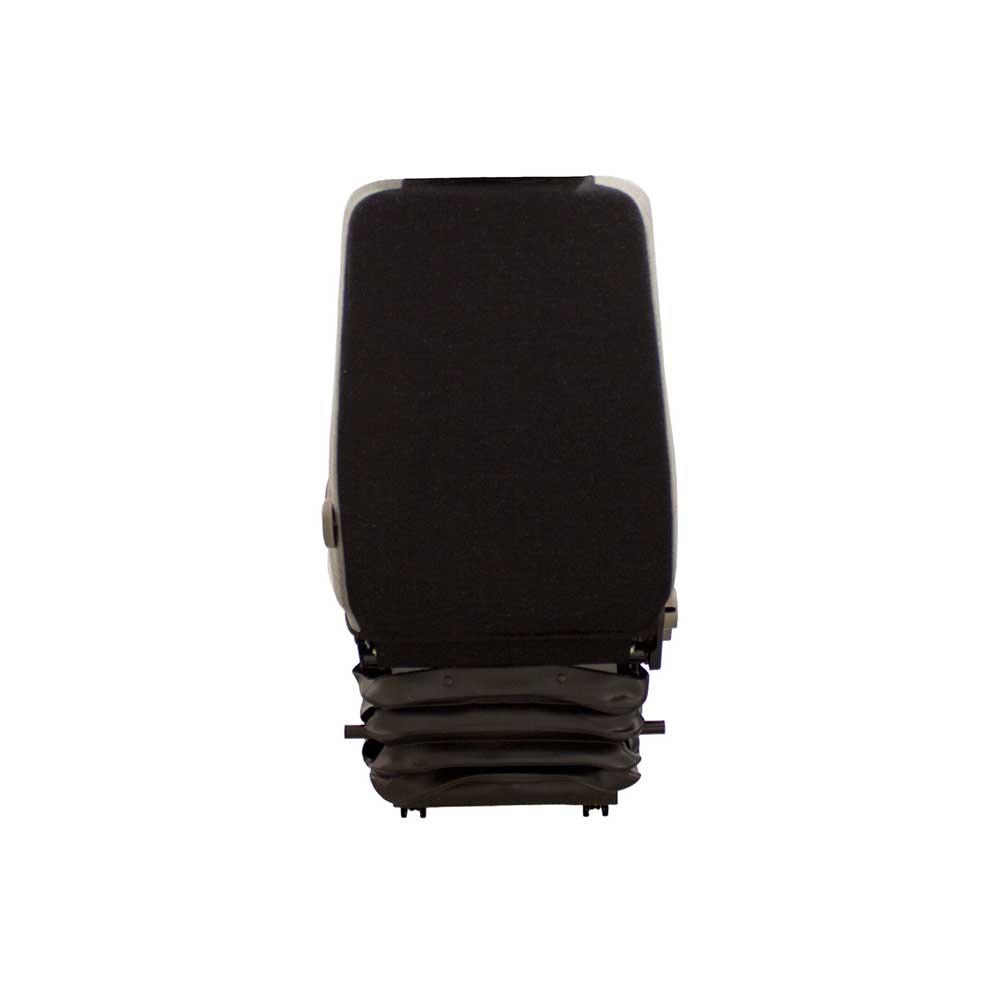

KAB | 514 | Seat & Mechanical Suspension | Black/Gray Fabric | 8062

This KAB suspension seat is a high-quality seat and mechanical suspension assembly designed to provide superior comfort in construction equipment. Engineered to tackle all types of rough terrain, this seat ensures you stay comfortable and productive, no matter how demanding the job.

Features + Benefits

• Heavy-duty multi-gray Cordura fabric covering
• 2-spring mechanical suspension
• Backrest angle adjustment for individual fit
• Contoured foam cushions to ensure operator comfort
• 5-position lumbar support to help prevent lower back pain
• 110 - 265 lb. weight adjustment
• 4 in. vertical suspension stroke
• Seat height and tilt adjustment of 2.5 in. on right side of suspension
• Adjustable slide rails with 8 in. of travel in 0.4 in. increments
• Durable suspension cover to keep components free of dirt and dust
• Vibration performance meets ISO 7096 specifications
• Seat meets EM1, EM3, EM4, EM5, EM6 and EM8 specifications
• Replacement seat for KAB 514

Applications

• Articulated Dump Trucks (Requires Adapter Plate or Drilling): 325, 325B, 330, 330B, 340, 340B
• Excavators (Drilling May Be Required): 9007B, 9010, 9010B, 9020, 9020B, 9030, 9030B, 9040, 9040B, 9050, 9050B, 9060, 9060B, CX75SR, CX80, CX130, CX130B, CX130C, CX135SR, CX145C, CX160, CX160B, CX160C, CX180, CX180B, CX180C, CX210, CX210B, CX210C, CX210BLR, CX210BNLC, CX210LR, CX210N, CX225SR, CX240, CX240B, CX240BLR, CX240LR, CX250C, CX290, CX290B, CX300C, CX330, CX350, CX350B, CX350C, CX370C, CX460, CX470B, CX470C, CX700, CX700B, CX800, CX800B
• Excavators: 235C, 307, 307B, 311, 312, 315, 315L, 318BLN, 320, 320BS, 320LC, 320N, 321C LCR, 321C LR, 325, 330LC, 350, 350L, 375, 375L, E70B, E110B, EL240C
• Wheel Loaders: 906, 906H, 908, 908H, 920
• Articulated Dump Trucks (Requires Adapter Plate or Drilling): DA30-5, DA40-5
• Wheel Loaders: DL200, DL250
• Dozers (Requires Adapter Plate or Drilling): TD7E, TD7G, TD8E, TD8G, TD8H, TD8M, TD9H, TD10M, TD10R, TD15C, TD15E, TD15M, TD20C, TD20E, TD20M, TD25E, TD25G
• Wheel Loaders (Requires Adapter Plate or Drilling): 515B, 515C, 520B, 520C, 520E, 530C, 530E, 540, 550, 560B, 560E, 570
• Excavators: R110-7, R140-7, R140-9, R160-7, R160-9, R180-7, R180-9, R210-7, R210-9, R220-9, R250-7, R250-9, R290-7, R290-9, R320-7, R320-9, R360-7, R380-9, R450-7, R480-9, R500-7, R520-9
• Wheel Loaders: HL730-3, HL730-7, HL740-7, HL757-7, HL760-3, HL760-7, HL770-7, HL780-7
• Articulated Dump Trucks (Requires Adapter Plate or Drilling): 250C, 250D, 300C, 300D, 350C, 350D, 400C, 400D
• Dozers/Crawlers (May Require Adapter Plate or Drilling): 655C, 755C
• Excavators: 70, 70D, 75C, 75D, 75G, 80, 80C, 85D, 110, 120, 120C, 120D, 130G, 135C, 135C RTS, 135D, 135G, 160, 160C, 160C LC, 160D, 160D LC, 160 LC, 160G LC, 180G LC, 190DW, 190GW, 200C LC, 200D, 200D LC, 200 LC, 210G, 210G LC, 220DW, 225C LC RTS, 225D, 225D LC, 230C LC, 230GW, 230 LC, 230 LC R, 230 LC RD, 240D, 240D LC, 245G, 245G LC, 270C LC, 270D, 270D LC, 270 LC, 290D, 290G LC, 300G LC, 330C LC, 330 LC, 330 LC R, 370, 370C, 380G LC, 470G LC, 490, 490D, 490E, 495D, 550 LC, 590D, 595D, 600C LC, 650D, 650D LC, 670G LC, 690C, 690CR, 690D, 690DR, 690E LC, 750, 790, 790D, 790E LC, 792, 792D LC, 800C, 850D LC, 870G LC, 892D LC, 892E LC, 992D LC, 992E LC
• Log Loaders/Loggers: 2054, 2154D, 2454D, 2554, 2954D, 3154G, 3156G, 3554, 3754D, 3754G, 3754GLC, 3756G, 3756GLC
• Motor Graders (May Require Adapter Plate or Drilling): 670B, 670C, 670D, 672B, 672C, 770B, 770C, 770D, 772B
• Wheel Loaders (May Require Adapter Plate or Drilling): 344J, 444E, 444G, 544E, 544G, 544H, 624E, 624G, 644E, 644G, 644H, 744E
• Dozers: D31EX-22, D31PX-22, D37EX-22, D37PX-22, D39EX-22, D39PX-22, D51PX-22, D61EX-15, D61PX-15, D65EX-15, D65PX-15, D65EX-16, D65PX-16, D85EX-15, D85PX-15, D85PX-21
• Excavators (Requires KAB Adapter Plate): PC120-8, PC130-8, PC200-8, PC210-8, PC220-8, PC240-8, PC270-8, PC290-8, PC300-8, PC350-8, PC400-8, PC450-8
• Wheel Loaders (Requires KAB Adapter Plate): WA150-3, WA150-5, WA180-3, WA200-6, WA250-3, WA250-5, WA250-6, WA320-3, WA320-5, WA320-6, WA380-3, WA380-5, WA380-6, WA400-5, WA420-3, WA450-3, WA450-5, WA450-6, WA470-5, WA480-5, WA500-3
• Dozers: D150, D150.B, DC180.B
• Excavators: E70 MIDI, E80 MIDI, E130, E135B, E160, E175B, E215, E215B, E235BSR, E235BSRLC, E235BSRNLC, EH70, EH80, EH130, EH160, EH215
• Wheel Loaders: FW90, FW110, FW130, FW170, FW190, FW270, LW90, LW110, LW110.B, LW130, LW130.B, LW130TC, LW170, LW170.B, LW170TC, LW190, LW190.B, LW230, LW230.B, LW270, LW270.B, W110, W130
• Articulated Dump Trucks (Requires Adapter Plate or Drilling): A25C, A25D, A25E, A25F, A25G, A30C, A30D, A30E, A30F, A35C, A35D, A35E, A35F, A40C, A40D, A40E, A40F, A40G
• Excavator: EC140B
• Wheel Loaders (Requires Adapter Plate or Drilling: L60E, L70B, L70C, L70D, L70E, L70F, L70G, L90B, L90C, L90D, L90E, L110E, L110F, L120C, L120E, L120F, L120G, L1150C, L150E, L150F, L150G, L220D
