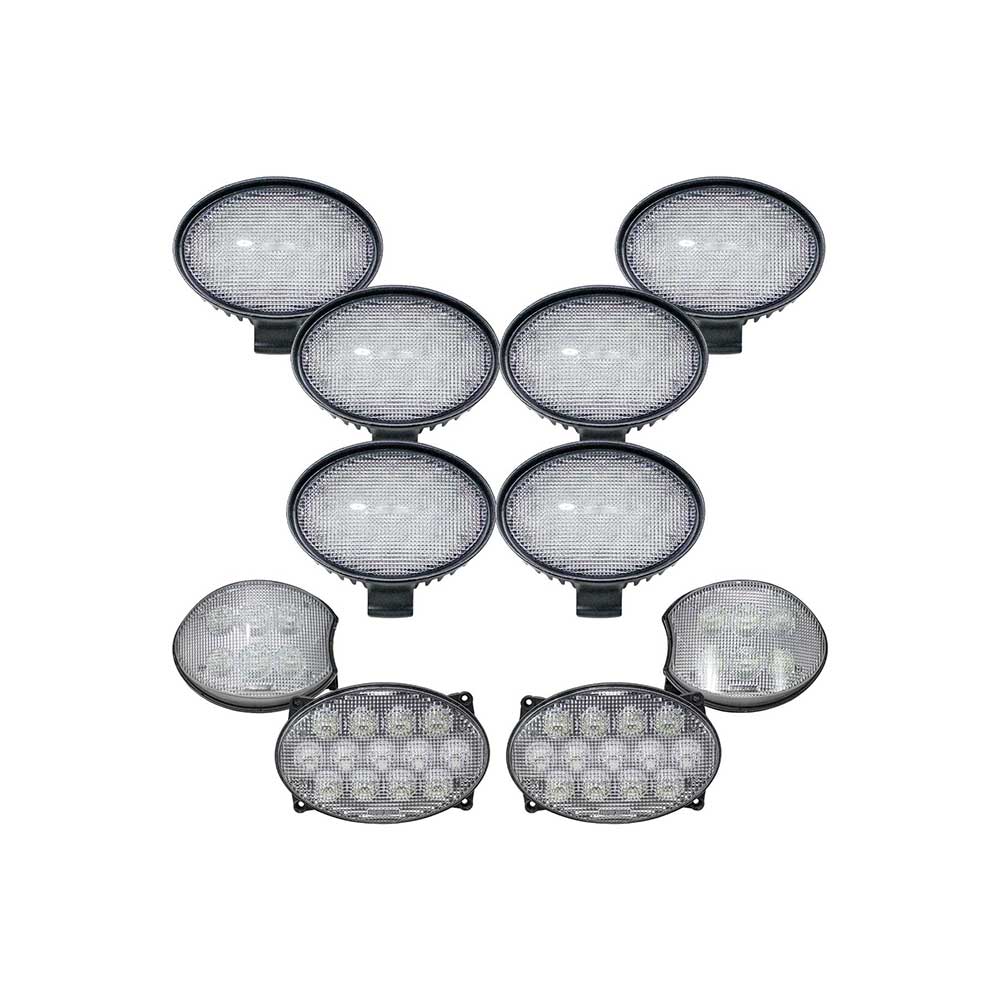

Tiger Lights Complete John Deere 7020-7030 Series LED Light Kit

Use this complete plug and play replacement LED Light Kit for all Hood, Mid Mount, Rear Fender and Rear Upper Cab Lights on John Deere® 7020 or 7030 Series tractors. Save yourself time and money with LED Lights that are IP68 rated so that no dust will get in your light and your light can be fully and continuously submerged in water, but there will be no side effects. These lights have filters that will eliminate unwanted radio and electromagnetic frequencies from external sources. Their die-cast aluminum housing/heatsink gives them long-lasting durability for a high quality and long service life. Aluminum housing is specifically designed to dissipate heat away from the internal electronics, which increases light output and improves performance. This light is designed to handle any severe environmental condition. This LED Light features a durable polycarbonate lens, it is built to be RoHS compliant, and comes with stainless steel hardware. The color of light LEDs emit is near the color spectrum of the mid-day sun and allows the human eye to function and view objects better to improve your work environment.

• Tiger Lights JDKIT8 Light Kit

• Flood or flood/spot beam pattern

• 47,000 effective lumens

• 580 watts

• 48.2 amp draw

• Input voltage: 12-Volt to 24-Volt

• Plug and play wiring for easy install

• Use original mount and wiring

• Kit includes: 10 lights (2 outer hood, 2 inner hood, 2 front mid mount, 2 rear fender and 2 rear upper cab lights), connectors, adapters and hardware

• Left-Hand Outer Hood Light Features (PN: 2649 - TL7830L Light):1 LED light is 6.5-in. x 4.75-in. x 2.75-in. (W x H x D)

• Flood beam pattern

• 2,000 effective lumens

• 6 LEDs

• 30 watts

• 2.5 amp draw

• Plug and play wiring for easy install

• Right-Hand Outer Hood Light Features (PN: 2650 - TL7830R Light):1 LED light is 6.5-in. x 4.75-in. x 2.75-in. (W x H x D)

• Flood beam pattern

• 2,000 effective lumens

• 6 LEDs

• 30 watts

• 2.5 amp draw

• Plug and play wiring for easy install

• Inner Hood Light - Hi/Lo Features (PN: 2648 - TL7820 Light):2 LED lights are 7.12-in. x 4.75-in. x 3-in. (W x H x D)

• Flood/spot beam pattern

• 5,000 effective lumens

• 13 LEDs

• 65 watts

• 5.4 amp draw

• Plug and play wiring for easy install

• Will work for hi/lo and high beams

• Mid Mount, Fender and Upper Cab Light Features (PN: 3120 - TL5680 Light):6 LED lights are 6.5-in. x 4.5-in. x 4-in. (W x H x D)

• Flood beam pattern

• 5,200 effective lumens

• 13 LEDs

• 60 watts

• 5 amp draw

• Plug and play wiring for easy install

• Replaces all hood, mid mount, rear fender and upper cab lights (2 outer hood, 2 inner hood, 2 mid mount, 2 rear fender and 2 rear upper cab lights)

• Available Options:7020 Series LED Amber Cab Corner Light (PN: 2651) - need to purchase 4 lights to replace all 4 lights

• 7020 Series LED Upper Cab Light Kit (PN: 2958) - replaces 2 lights (replace upper brackets on the windshield and add 2 lights to tuck under front of cab, lights will pig tail off the existing lower mid mount lights)

• 7030 Series LED Amber Cab Corner Light (PN: 2748) - need to purchase 4 lights to replace all 4 lights

• LED Extra Work Light (PN: 3120) - need to purchase 2 or 4 extra work lights depending on if you tractor has more work lights than what the basic kit provides
