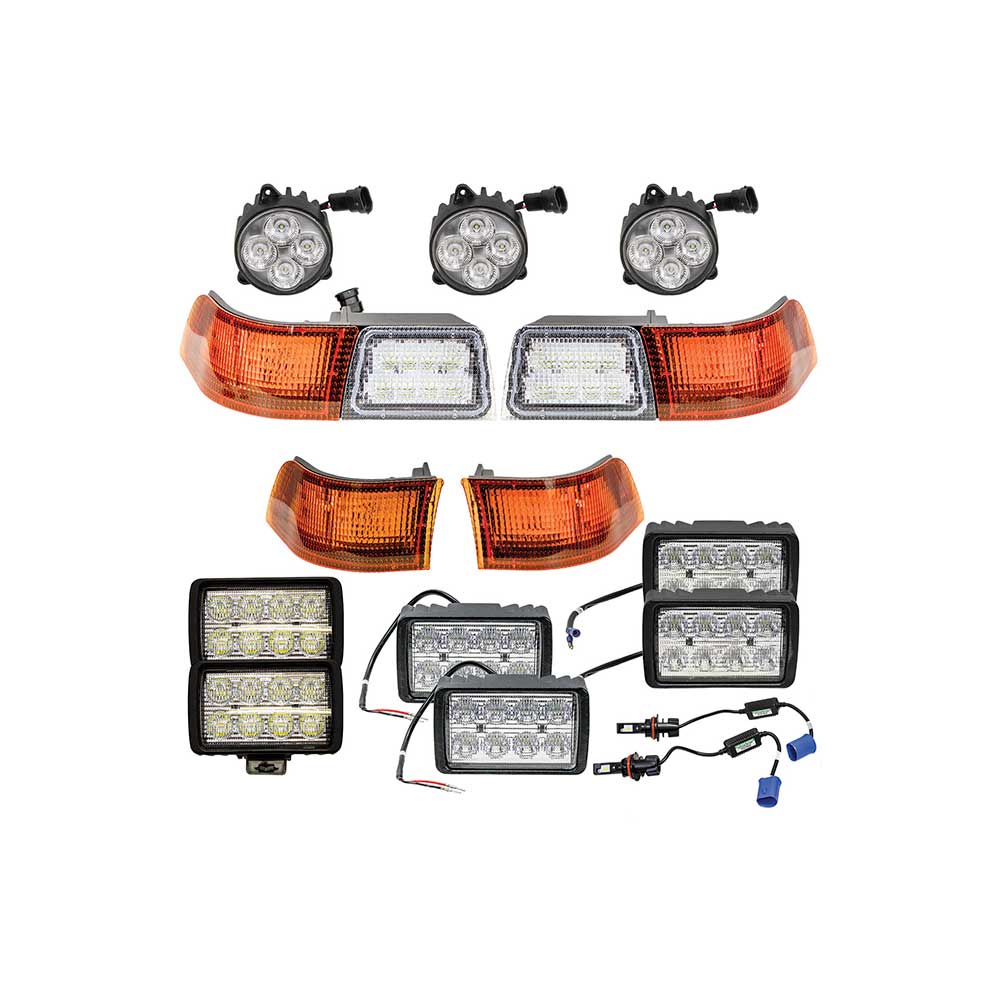

Tiger Lights Complete Case IH Magnum-MX Series LED Light Kit

Use this complete plug and play replacement LED Light Kit for all Hood, Front and Rear Upper Cab, Rear Fender and Windshield Lights on Case IH Magnum and MX Series tractors. Save yourself time and money with LED Lights that are IP68 rated so that no dust will get in your light and your light can be fully and continuously submerged in water, but there will be no side effects. These lights have filters that will eliminate unwanted radio and electromagnetic frequencies from external sources. Their die-cast aluminum housing/heatsink gives them long-lasting durability for a high quality and long service life. Aluminum housing is specifically designed to dissipate heat away from the internal electronics, which increases light output and improves performance. This light is designed to handle severe environmental conditions. This LED Light features a durable polycarbonate lens, it is built to be RoHS compliant, and comes with stainless steel hardware. The color of light LEDs emit is near the color spectrum of the mid-day sun and allows the human eye to function and view objects better to improve your work environment.

• Tiger Lights CASEKIT4 Light Kit
• Flood or amber flashing/flood beam pattern
• 37,200 effective lumens
• 396 watts
• Input voltage: 12-Volt to 24-Volt
• Plug and play wiring for easy install
• Use original mount and wiring
• Kit includes: 15 lights (3 front hood, 2 headlight bulb, 1 left-hand front upper cab corner, 1 right-hand front upper cab corner, 1 left-hand rear upper cab corner, 1 right-hand rear upper cab corner, 2 rear upper cab, 2 rear fender and 2 windshield lights), connectors, adapters and hardware
• Front Hood Light Features (PN: 2925 - TL6020 Light):3 LED lights are 3.37-in. diameter x 2-in. depth
• Flood beam pattern
• 3,200 effective lumens
• 4 LEDs
• 32 watts
• 2.6 amp draw
• Plug and play wiring for easy install
• Left-Hand Front Upper Cab Corner Amber Light with Attached White Work Light Features (PN: 2627 - TL6120L Light):1 LED light
• Amber flashing/flood beam pattern
• Amber light watts: 17W + 12W resistor
• Amber light: 2.4 amp draw
• White light: 3,000 effective lumens
• White light: 8 LEDs
• White light: 30 watts
• White light: 3.3 amp draw
• Plug and play wiring for easy install
• Right-Hand Front Upper Cab Corner Amber Light with Attached White Work Light Features (PN: 2628 - TL6120R Light):1 LED light
• Amber flashing/flood beam pattern
• Amber light watts: 17W + 12W resistor
• Amber light: 2.4 amp draw
• White light: 3,000 effective lumens
• White light: 8 LEDs
• White light: 30 watts
• White light: 3.3 amp draw
• Plug and play wiring for easy install
• Left-Hand Rear Upper Cab Corner Amber Light Features (PN: 2625 - TL6130L Light):1 LED light
• Amber flashing/flood beam pattern
• Watts: 17W + 12W resistor
• 2.4 amp draw
• Plug and play wiring for easy install
• Right-Hand Rear Upper Cab Corner Amber Light Features (PN: 2626 - TL6130R Light):1 LED light
• Amber flashing/flood beam pattern
• Watts: 17W + 12W resistor
• 2.4 amp draw
• Plug and play wiring for easy install
• Rear Upper Cab Light Features (PN: 3106 - TL3030 Light):2 LED lights are 6-in. x 3.5-in. x 3-in. (W x H x D)
• Flood beam pattern
• 3,600 effective lumens
• 8 LEDs
• 40 watts
• 3.33 amp draw
• Bottom mount
• Plug and play wiring for easy install
• Rear Fender Light Features (PN: 2775 - TL3085 Light):2 LED lights are 6-in. x 3.5-in. x 3-in. (W x H x D)
• Flood beam pattern
• 3,600 effective lumens
• 8 LEDs
• 40 watts
• 3.33 amp draw
• Comes with a hollow bolt to easily run the wire to hide under the fender
• Plug and play wiring for easy install
• Windshield Light Features (PN: 2762 - TL3075 Light):2 LED lights are 6-in. x 3.5-in. x 3-in. (W x H x D)
• Flood beam pattern
• 3,600 effective lumens
• 8 LEDs
• 40 watts
• 3.3 amp draw
• Side mount bracket
• Installation may require wire splicing into original wiring
• LED Headlight Conversion Kit - Hi/Lo Features (PN: 2719 - TLHL-9007 Light):9007 bulb
• Hi/lo beam
• Lifespan of 10,000+ hours
• 6000 kelvin color temperature
• 360 heat dissipation
• Designed for a simple and quick installation to replace factory-installed bulb
• Plugs directly into vehicle's factory harness
• Replaces all hood, front and rear upper cab, rear fender and windshield lights (3 front hood, 2 headlight bulb, 1 left-hand front upper cab corner, 1 right-hand front upper cab corner, 1 left-hand rear upper cab corner, 1 right-hand rear upper cab corner, 2 rear upper cab, 2 rear fender and 2 windshield lights)
