GXV390UT1DEX3
Couldn't load pickup availability

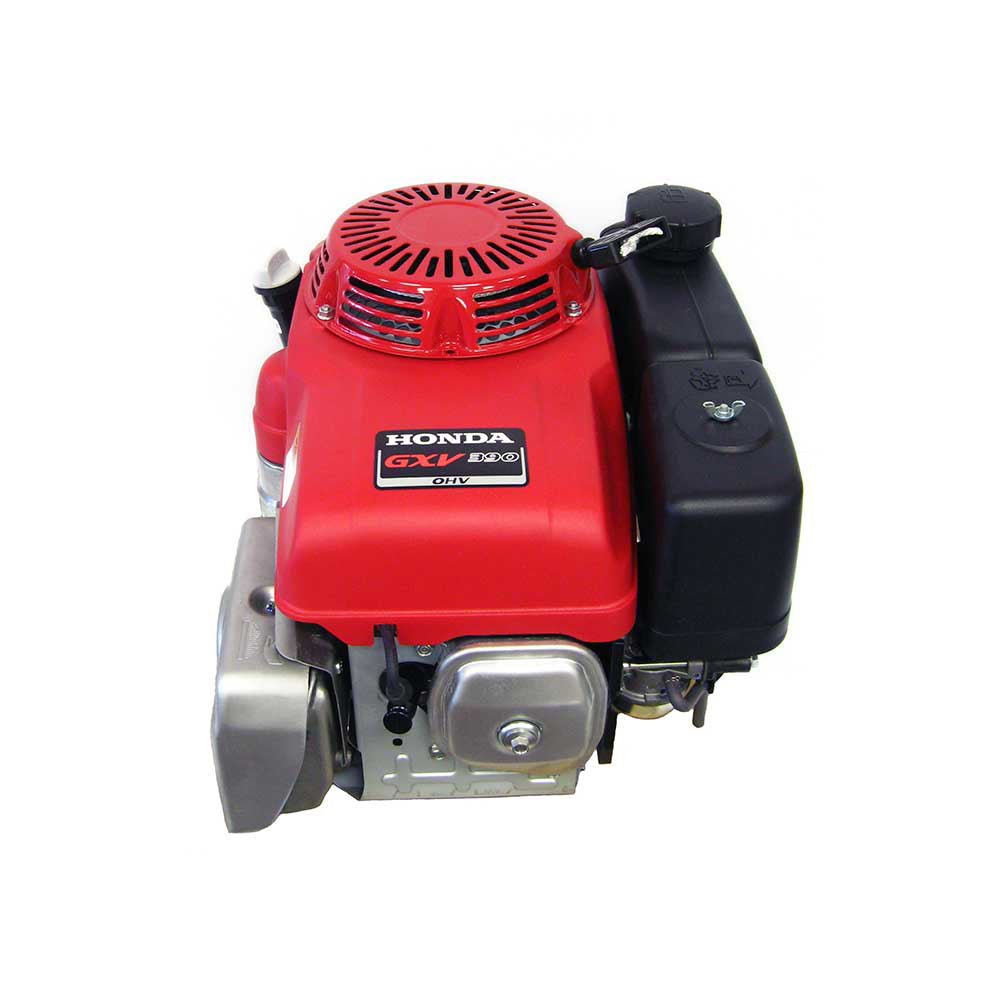

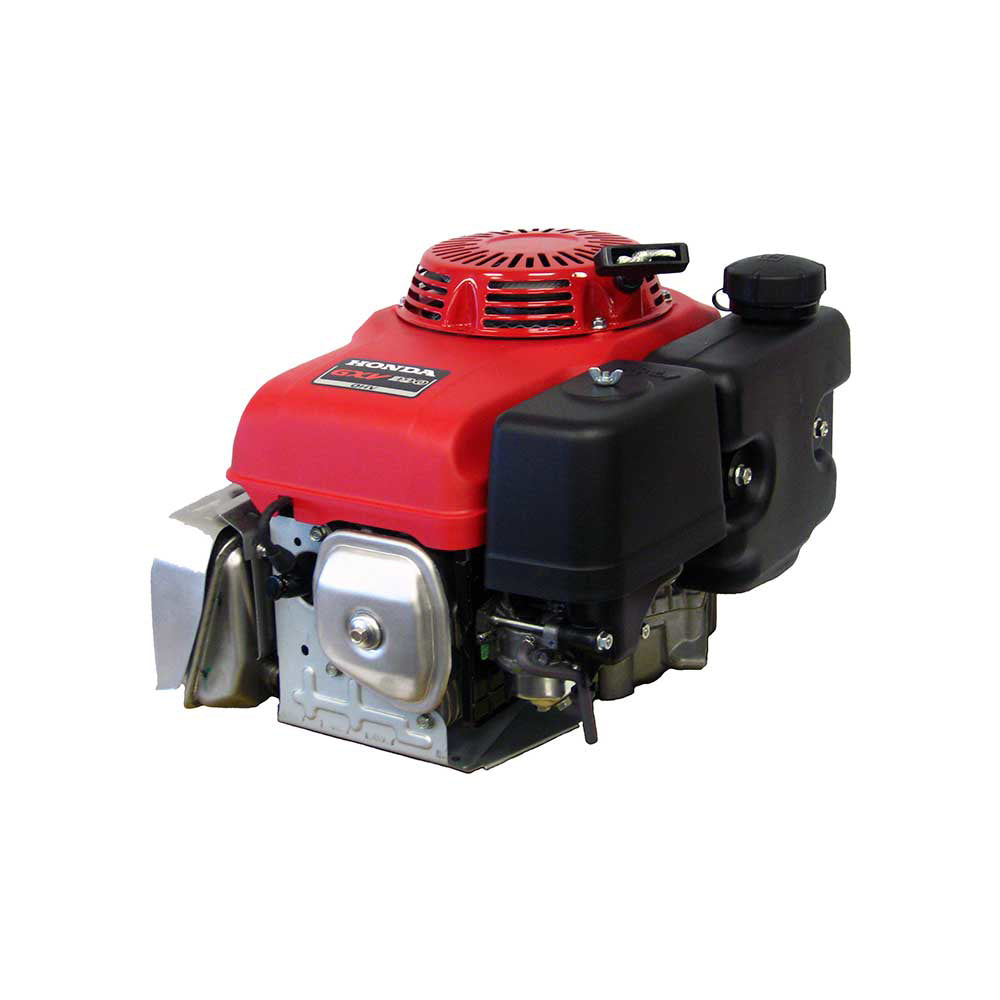

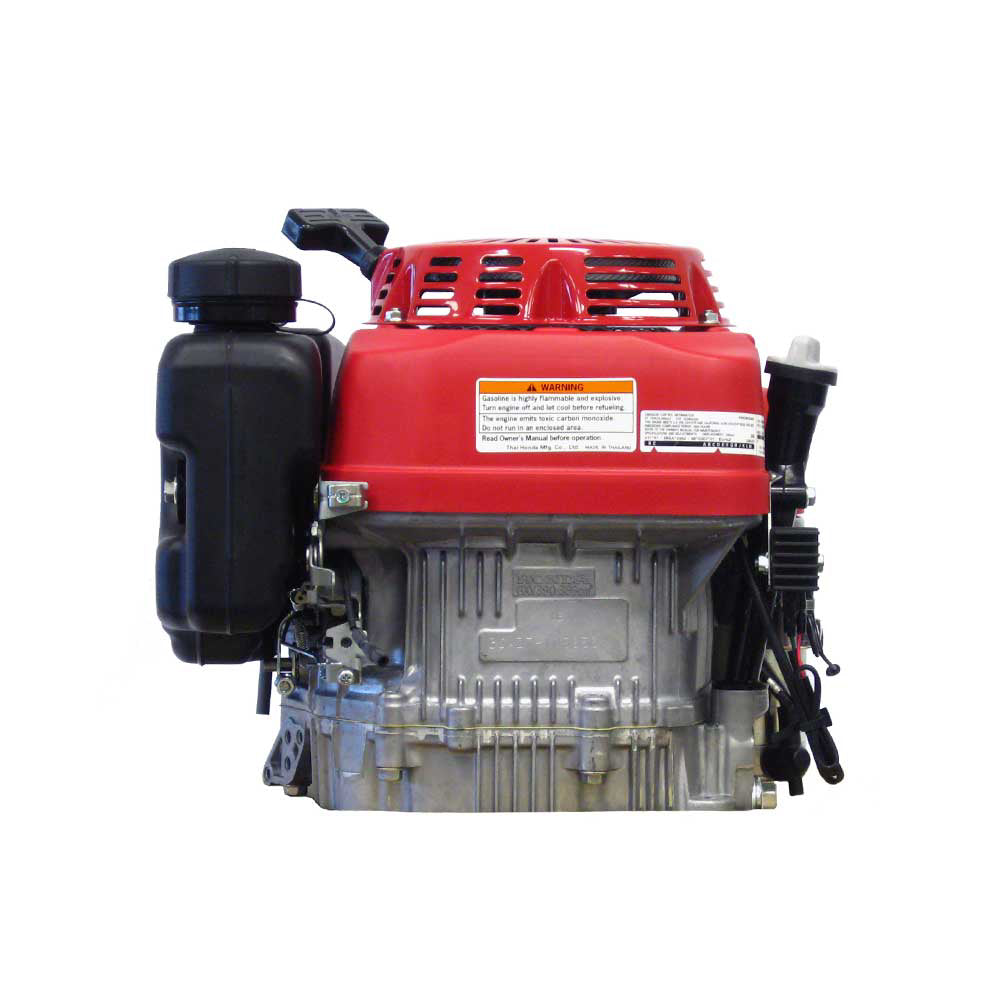

With the GXV390, you're looking at some of the best engines in the business. Powerful, reliable, durable, and quiet. Honda's GX series is power you can trust, and then some.
| Equipment Type | Engine (Vertical) |
| Air Cleaner Type | Dual Element |
| Bearing Type | Ball |
| Bore | 3.2-In. |
| CARB Approval For California | No |
| Carburetor | Float |
| Charging System Amps | 3 |
| Choke Control | Remote |
| Compression Ratio | 7.7:1 |
| Cooling System | Air Cooled |
| Crankshaft | D-Type |
| Crankshaft Diameter | 1 In. |
| Crankshaft Length | 3.13-In. |
| Crankshaft Output | Vertical |
| Crankshaft Rotation (From PTO Shaft Side) | Counterclockwise |
| Cylinder Bore | Cast Iron |
| Cylinders (Qty.) | 1 |
| Engine Displacement | 389 cc |
| EPA Compliant | Yes |
| Fuel Filter | In-Line |
| Fuel Tank & Capacity | Yes, 2.2 qt |
| Governor System | Centrifugal Mechanical |
| Ignition System | Transistorized Magneto |
| Item No_ | GXV390UT1DEX3 |
| Lubrication System | Pressure/splash |
| Max. RPM | 3600 |
| Mounting Bolt Circle | 10-In. |
| Muffler Included | Yes |
| Net Power Output | 10.2 HP |
| Net Torque | 17.8 Ft-Lbs. |
| Oil Capacity | 1.2 qt |
| Product Dimensions L X W X H - In. (mm) | 17 X 15 X 15.87-In. |
| Product Weight | 90 |
| Starter Type | Electric with Recoil Backup |
| Stroke | 2.5 In. |
| Throttle Control | Remote |
