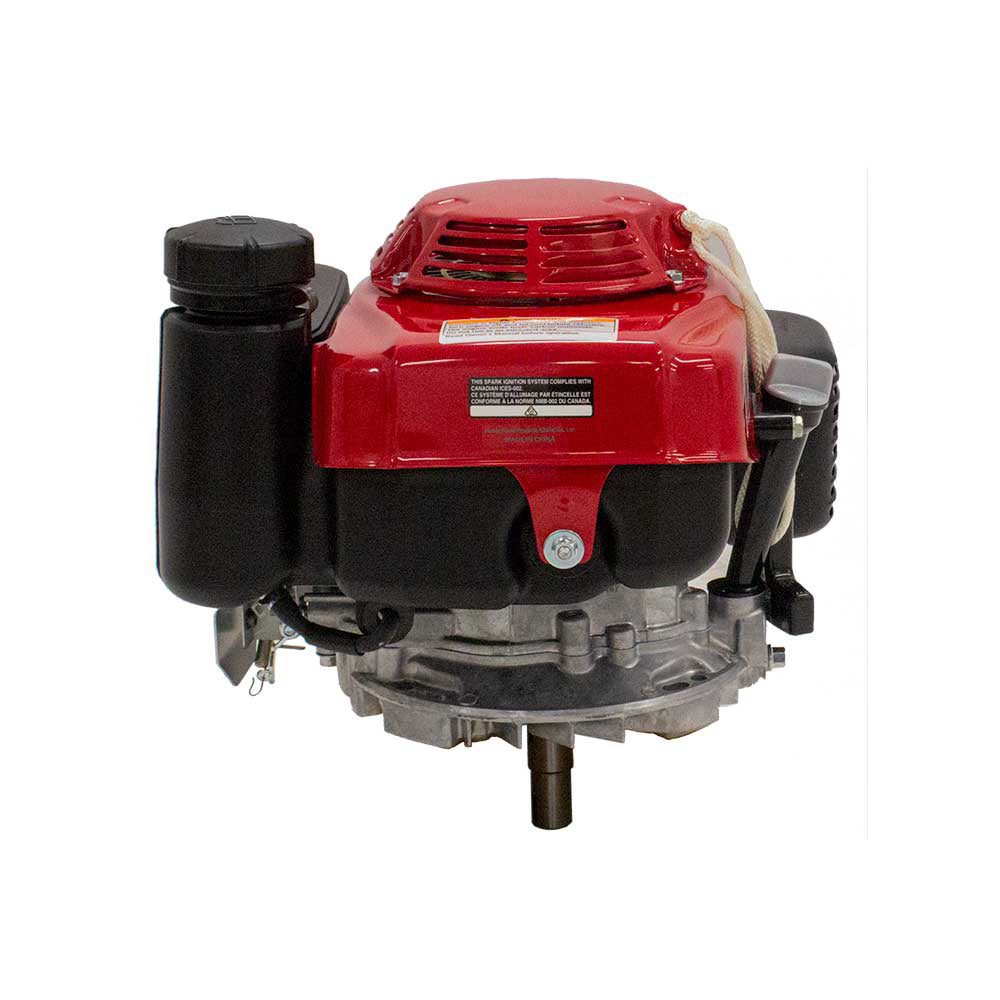

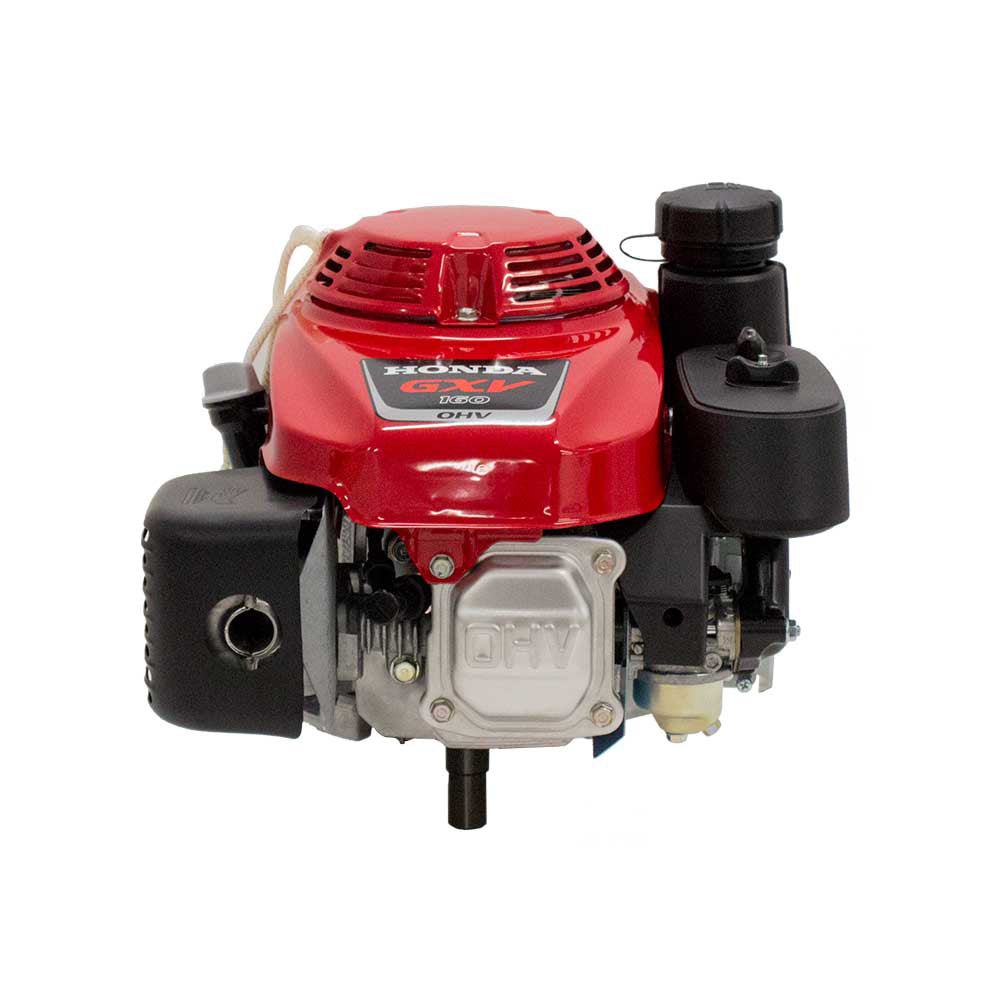

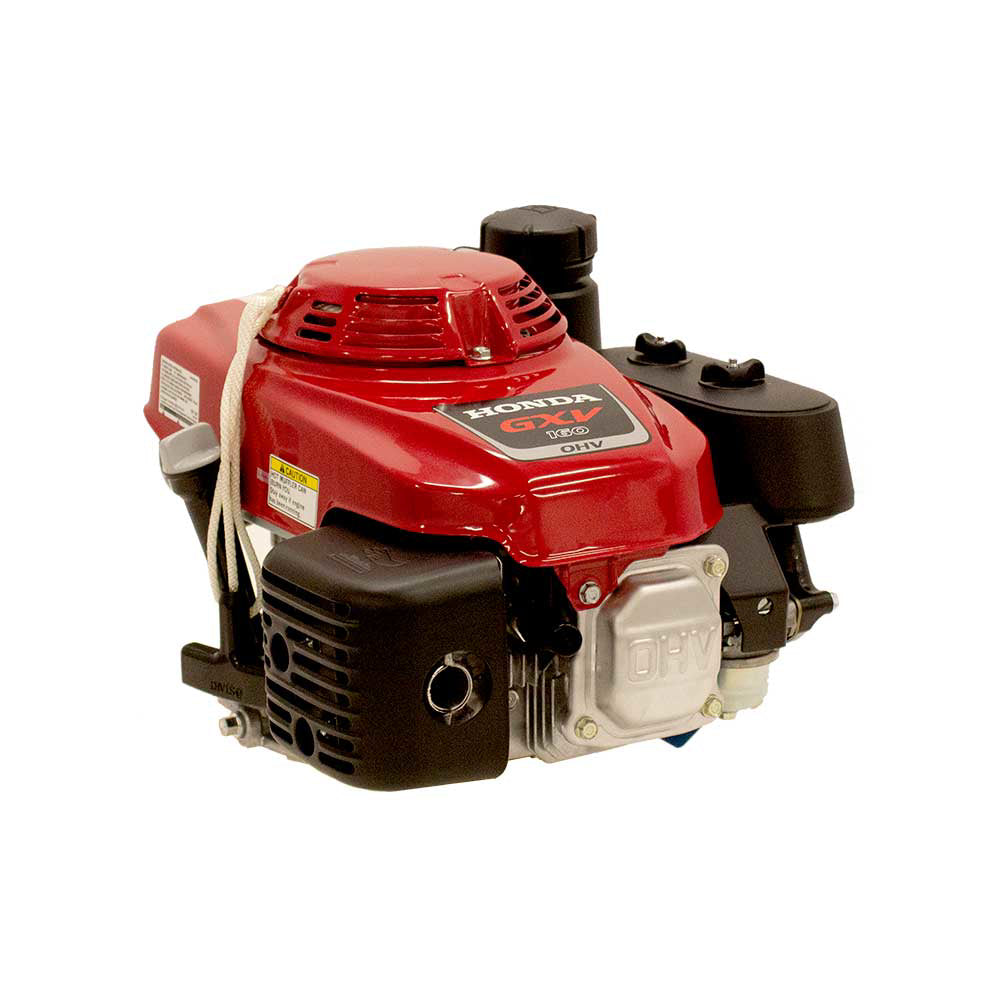

Honda | GXV Series | OHV | 163cc | 7/8 In. x 3.15 In. | Recoil | Vertical | Heavy Flywheel
$571.00
Regular price
$571.00
Sale price
$571.00
Regular price
Unit price
per
Shipping calculated at checkout.
GXV160UH2N1XH
Couldn't load pickup availability
Honda’s GXV series engines are legendary for superior reliability and performance. And there’s no doubt about it: The GXV160 lives up to the legend. Low noise levels, low vibration, and low emissions – without sacrificing power output or performance.
| Equipment Type | Engine (Vertical) |
| Air Cleaner Type | Dual Element |
| Bearing Type | Ball |
| Bore | 2.7-In. |
| CARB Approval For California | No |
| Carburetor | Float |
| Choke Control | Remote Rod |
| Compression Ratio | 8.0:1 |
| Cooling System | Air Cooled |
| Crankshaft | N1-Type |
| Crankshaft Diameter | .875 In. (7/8) |
| Crankshaft Length | 3.15-In. |
| Crankshaft Output | Vertical |
| Crankshaft Rotation (From PTO Shaft Side) | Counterclockwise |
| Cylinder Bore | Cast Iron |
| Cylinders (Qty.) | 1 |
| Engine Displacement | 160 cc |
| EPA Compliant | Yes |
| Fuel Filter | In-Line |
| Fuel Tank & Capacity | Yes, 1.9 Qt |
| Governor System | Centrifugal Mechanical |
| Ignition System | Transistorized Magneto |
| Item No_ | GXV160UH2N1XH |
| Lubrication System | Splash |
| Max. RPM | 3600 |
| Mounting Bolt Circle | 8-In. |
| Muffler Included | Yes |
| Net Power Output | 4.3 HP |
| Net Torque | 7.1 Ft-Lbs. |
| Oil Capacity | 0.69 qt |
| Product Dimensions L X W X H - In. (mm) | 16.31 X 14.12 X 13.87-In. |
| Product Weight | 44 |
| Starter Type | Recoil |
| Stroke | 1.8 In. |
| Throttle Control | Remote Rod |
