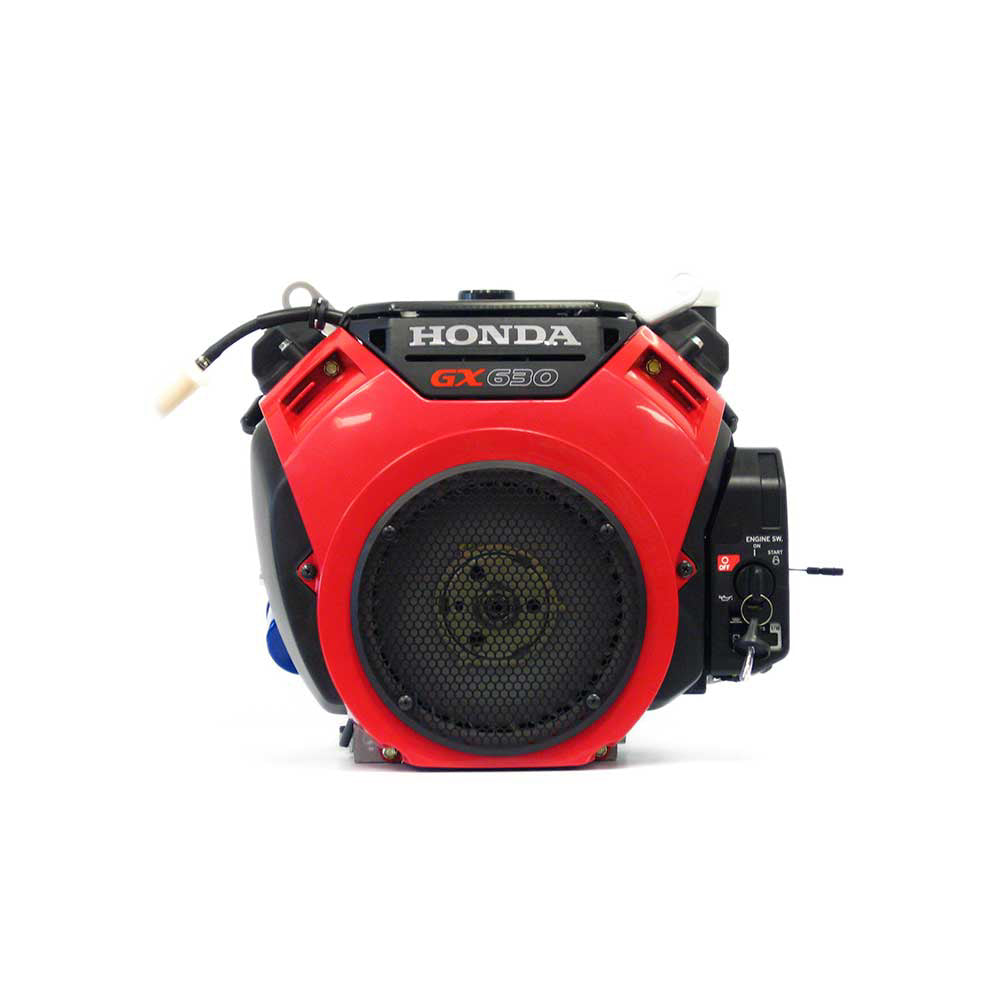

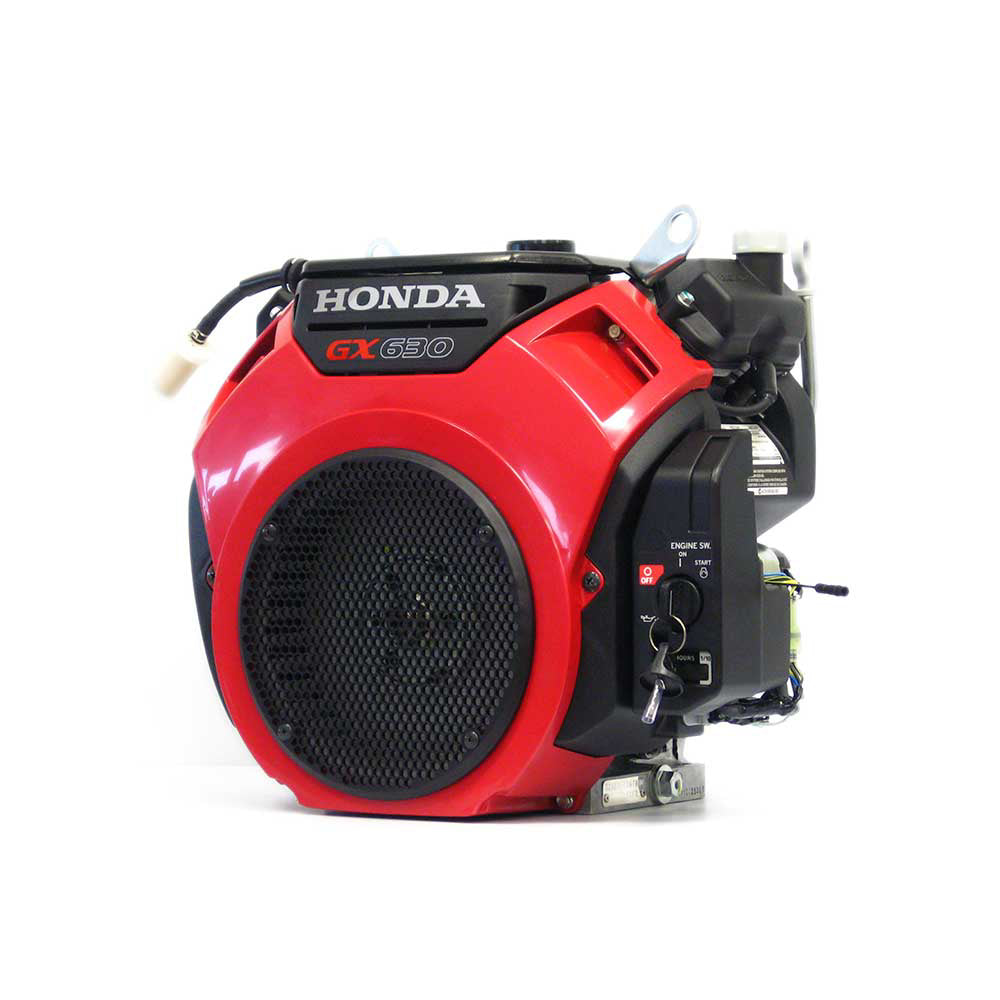

Honda | GX Series | OHV | V-Twin | 688cc | 1-1/8 In. x 3.8 In. | Electric | Horizontal

$1,852.00
$1,852.00
$1,852.00
Shipping calculated at checkout.

GX630RHTXF2

Honda V-Twin engines offer high horsepower, great adaptability, quiet operation, and excellent fuel efficiency.

Equipment Type Engine (Horizontal)
Air Cleaner Type DNLS5 Air Cleaner (not included)
Bearing Type Ball
Bore 3.1-In.
CARB Approval For California No
Carburetor 2-Barrel Butterfly Valve, Internal Vent
Charging System Amps 17
Choke Control Remote Rod
Compression Ratio 9.3:1
Cooling System Air Cooled
Crankshaft T-Type
Crankshaft Diameter 1.125 In. (1-1/8)
Crankshaft Length 3.8-In.
Crankshaft Output Horizontal
Cylinder Bore Integrated
Cylinders (Qty.) 2
Engine Displacement 688 cc
EPA Compliant Yes
Fuel Filter In-Line
Fuel Tank & Capacity No
Governor System Mechanical
Ignition System Electronic, Digital CDI With Variable Ignition Timing
Item No_ GX630RHTXF2
Low Oil Shutdown Yes
Lubrication System Forced Lubrication
Max. RPM 3600
Mounting Base Length 7.68-In.
Mounting Base Width 3.39 to 4.65-In.
Mounting Bolt Circle 5, 6.5, 7.75-In.
Muffler Included No
Net Power Output 20.8 HP
Net Torque 35.6 Ft-Lbs.
Oil Capacity 2.1 Qt
Product Dimensions L X W X H - In. (mm) 15.94-In. (405mm) X 16.14-In. (410mm) X 17.24-In. (438mm)
Product Weight 125
PTO Height 5.25-In.
Starter Type Electric
Stroke 2.8 In.
Throttle Control Remote Rod
