GX160UT2XQX2
Couldn't load pickup availability

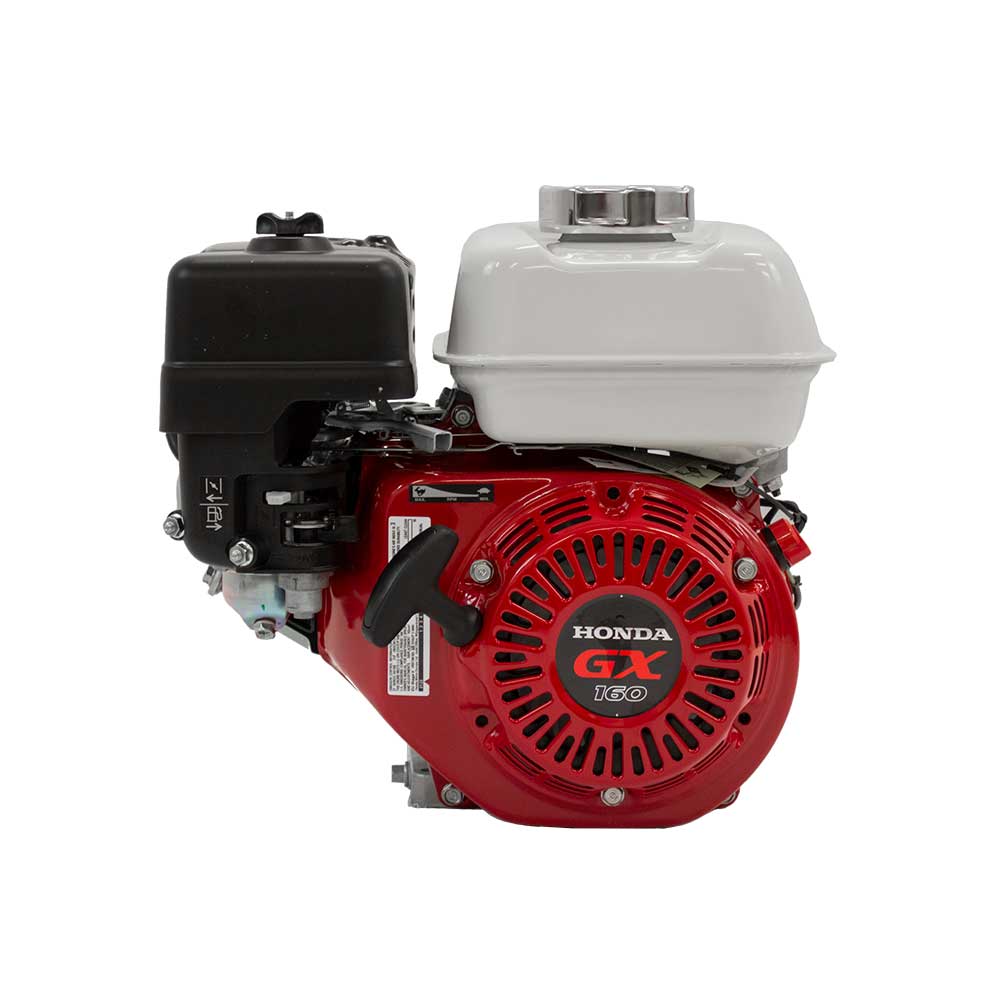

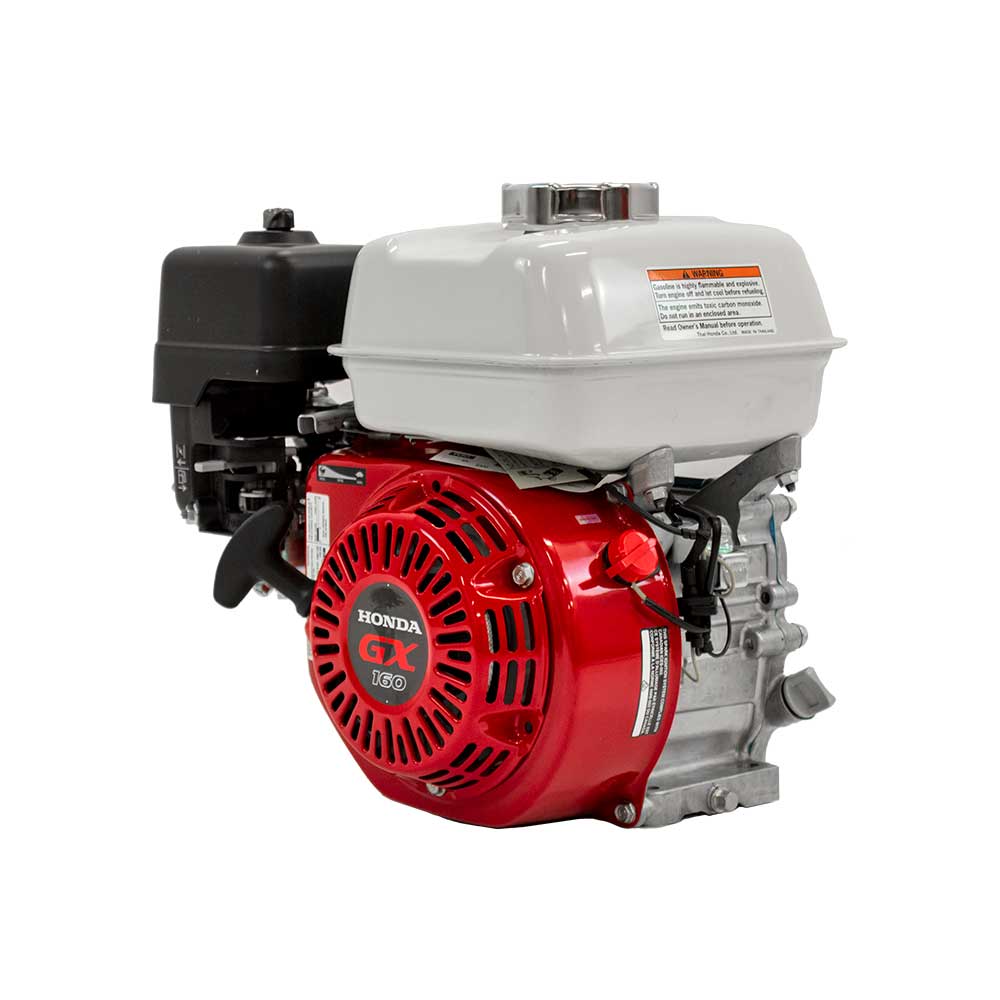

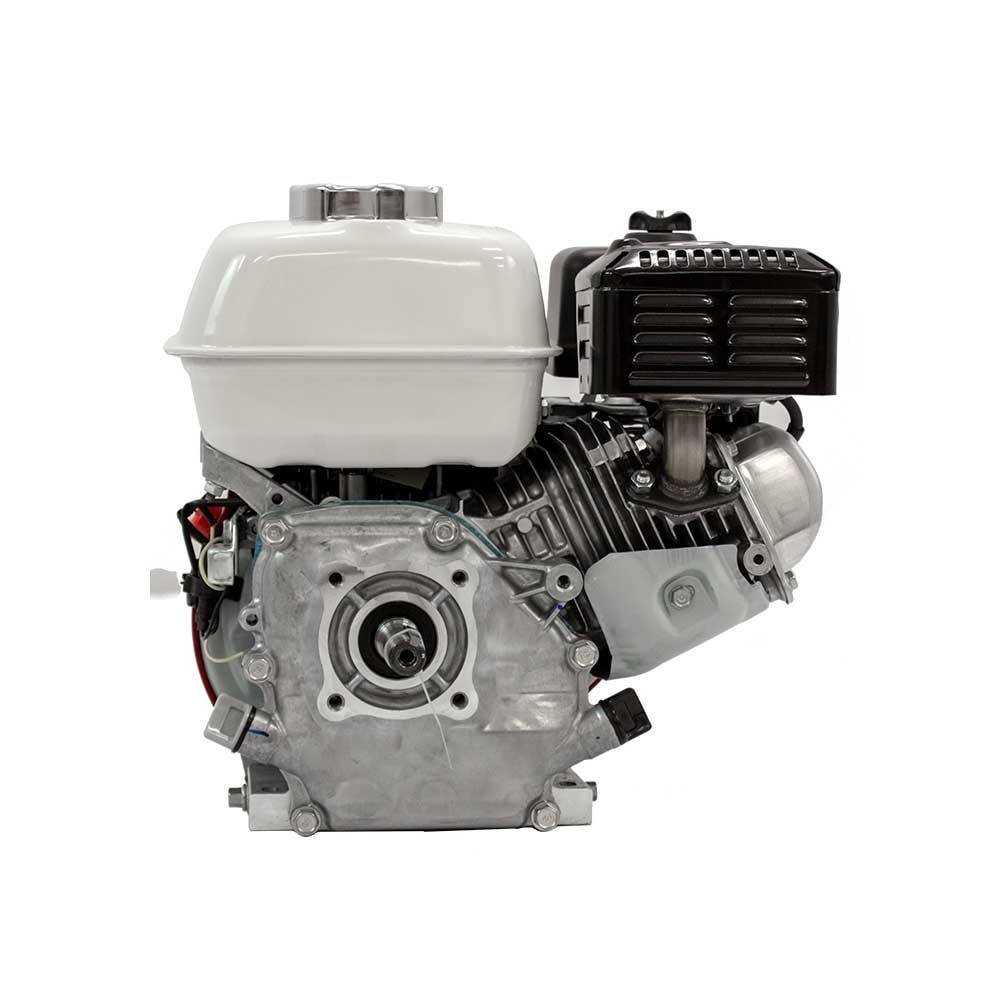

Honda's GX series engines are legendary for superior reliability and performance. And there's no doubt about it: The GX160 lives up to the legend. Low noise levels, low vibration, and low emissions - without sacrificing power output or performance.
| Equipment Type | Engine (Horizontal) |
| Air Cleaner Type | Dual Element |
| Bearing Type | Ball |
| Bore | 2.7-In. |
| CARB Approval For California | No |
| Carburetor | Butterfly Float |
| Choke Control | Manual |
| Compression Ratio | 9.0:1 |
| Cooling System | Air Cooled |
| Crankshaft | Q-Type |
| Crankshaft Diameter | .75 In. (3/4) |
| Crankshaft Length | 2.43-In. |
| Crankshaft Output | Horizontal |
| Cylinder Bore | Cast Iron |
| Cylinders (Qty.) | 1 |
| Engine Displacement | 163 cc |
| EPA Compliant | Yes |
| Fuel Filter | In-Line |
| Fuel Tank & Capacity | Yes, 3.3 Qt |
| Governor System | Centrifugal Mechanical |
| Ignition System | Transistorized Magneto |
| Low Oil Alert | Yes |
| Low Oil Shutdown | Yes |
| Lubrication System | Splash |
| Max RPM | 3600 |
| Mounting Base Length | 6.375-In. |
| Mounting Base Width | 3.15 to 3.34-In. |
| Mounting Bolt Circle | 3.625-In. |
| Muffler Included | Yes |
| Net Power Output | 4.8 HP |
| Net Torque | 7.6 Ft-Lbs. |
| Oil Capacity | 0.61 Qt |
| Product Dimensions L X W X H - In. (mm) | 12.28-In. (312mm) X 14.25-In. (362mm) X 13.62-In. (346mm) |
| Product Weight | 40 |
| PTO Height | 4.17-In. |
| Starter Type | Recoil |
| Stroke | 1.8 In. |
| Throttle Control | Remote |
