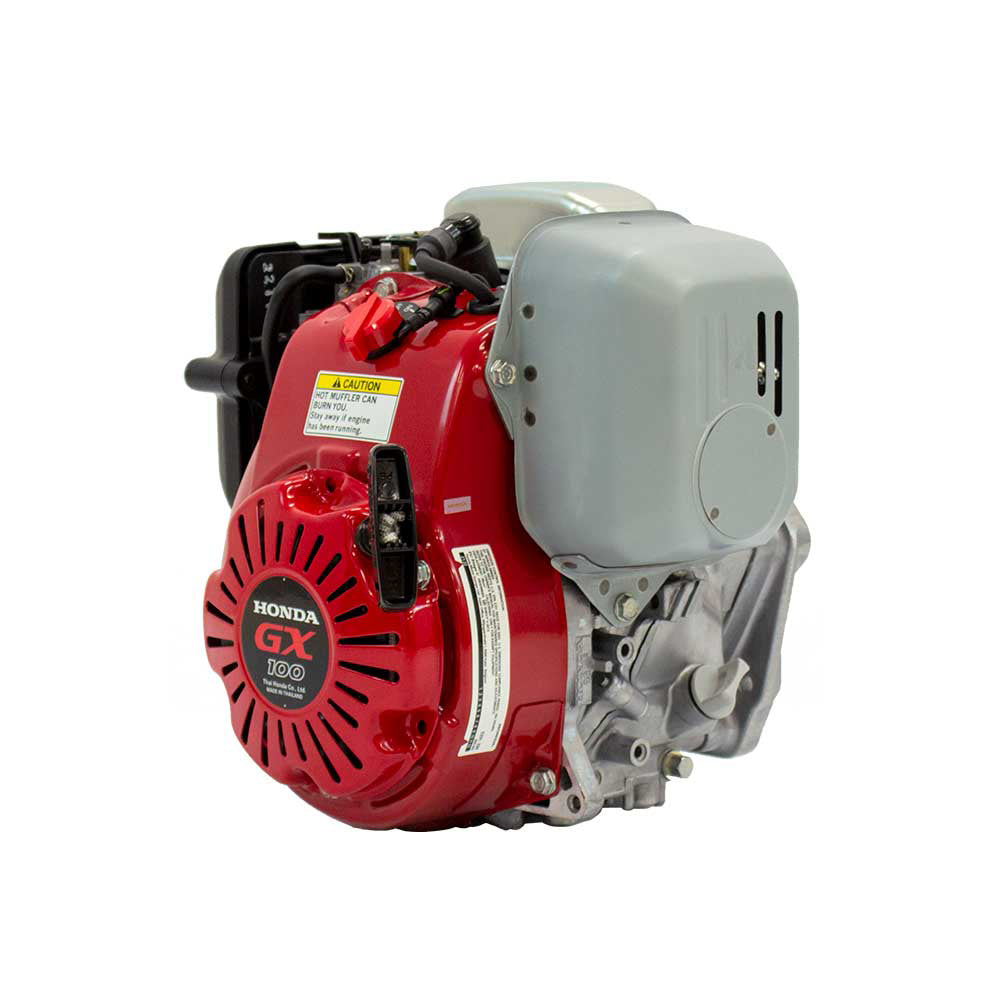

Honda | GX Series | OHC | 98cc | M12 x 1.25 Threaded | Recoil | Horizontal | Rammer Spec
$523.00
Regular price
$523.00
Sale price
$523.00
Regular price
Unit price
per
Shipping calculated at checkout.
GX100RTKRA2
Couldn't load pickup availability
Honda’s GX series engines are legendary for superior reliability and performance. And there’s no doubt about it: The GX100 lives up to legend. Low noise levels, low vibration, and low emissions – without sacrificing power output or performance.
| Equipment Type | Engine (Horizontal) |
| Air Cleaner Type | Dual Element |
| Bearing Type | Ball |
| Bore | 2.2-In. |
| CARB Approval For California | No |
| Carburetor | Rammer Float less |
| Choke Control | Throttle |
| Compression Ratio | 8.5:1 |
| Cooling System | Air Cooled |
| Crankshaft | K-Type |
| Crankshaft Diameter | Metric M12 X 1.25 Threaded |
| Crankshaft Output | Horizontal |
| Cylinder Bore | Cast Iron |
| Cylinders (Qty.) | 1 |
| Engine Displacement | 98.5 cc |
| EPA Compliant | Yes |
| Fuel Tank & Capacity | No |
| Governor System | Centrifugal Mechanical |
| Ignition System | Transistorized Magneto |
| Item No_ | GX100RTKRA2 |
| Low Oil Alert | No |
| Low Oil Shutdown | No |
| Lubrication System | Splash |
| Max. RPM | 3600 |
| Mounting Base Length | 6.375-In. |
| Mounting Base Width | 3.15 to 3.34-In. |
| Mounting Bolt Circle | 3.625-In. |
| Muffler Included | Yes |
| Net Power Output | 2.8 HP |
| Net Torque | 4.2 Ft-Lbs. |
| Oil Capacity | 0.42 Qt |
| Product Dimensions L X W X H - In. (mm) | 11.6-In. (295mm) X 12-In. (304mm) X 15.8-In. (402mm) |
| Product Weight | 29 |
| PTO Height | 4.17-In. |
| Starter Type | Recoil |
| Stroke | 1.56 In. |
| Throttle Control | Throttle |
