GS190LAXQHAF
Couldn't load pickup availability

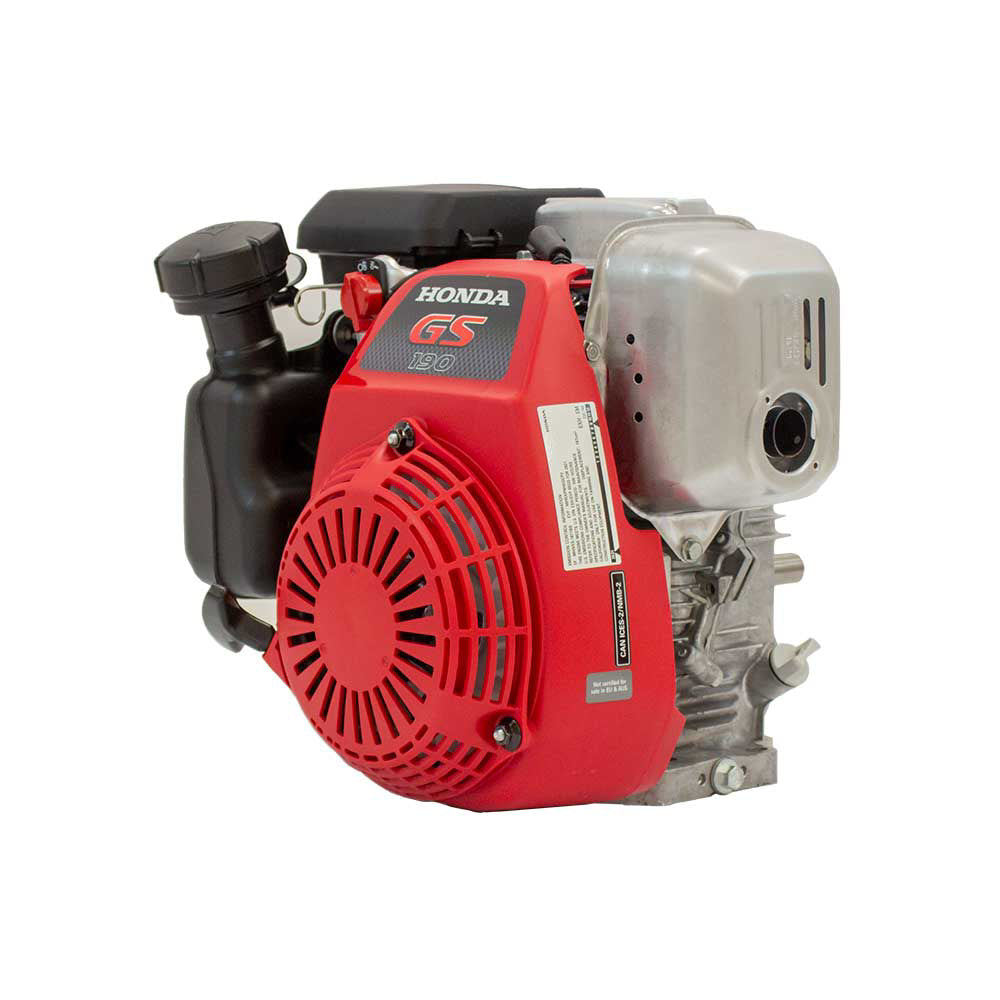

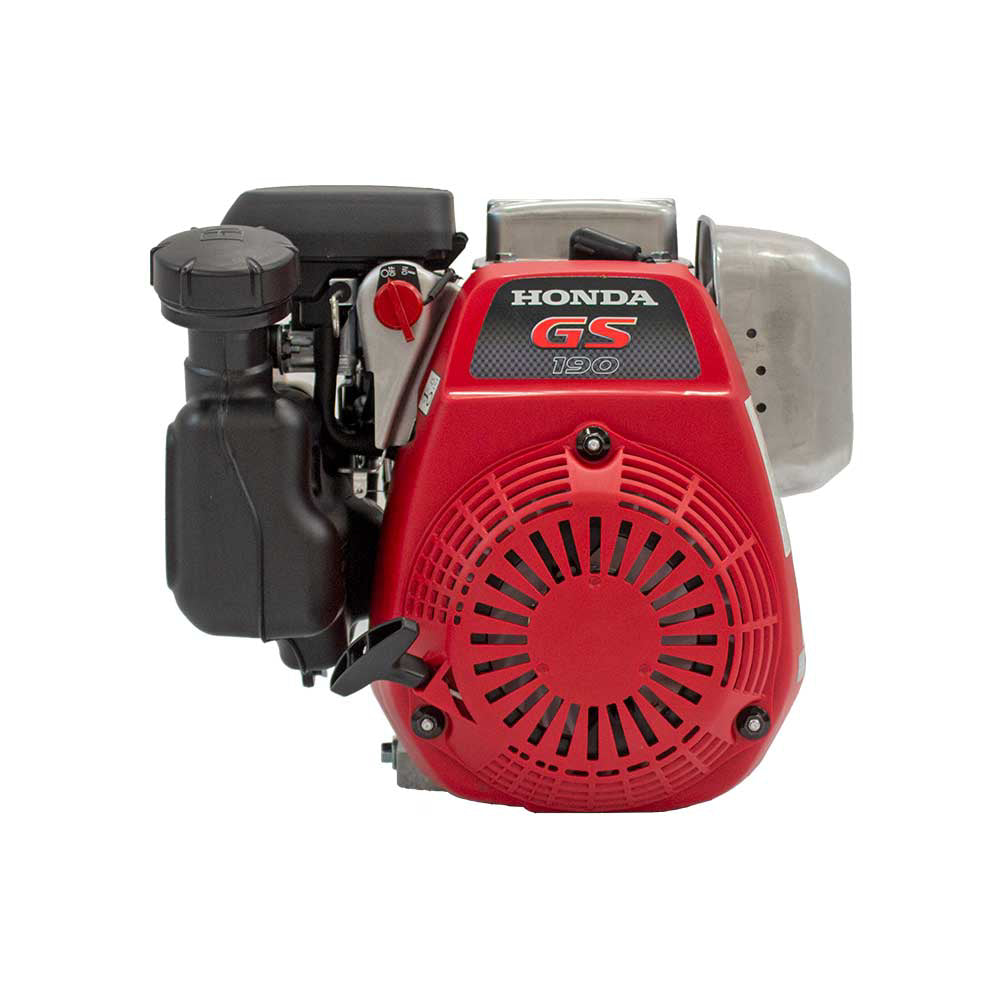

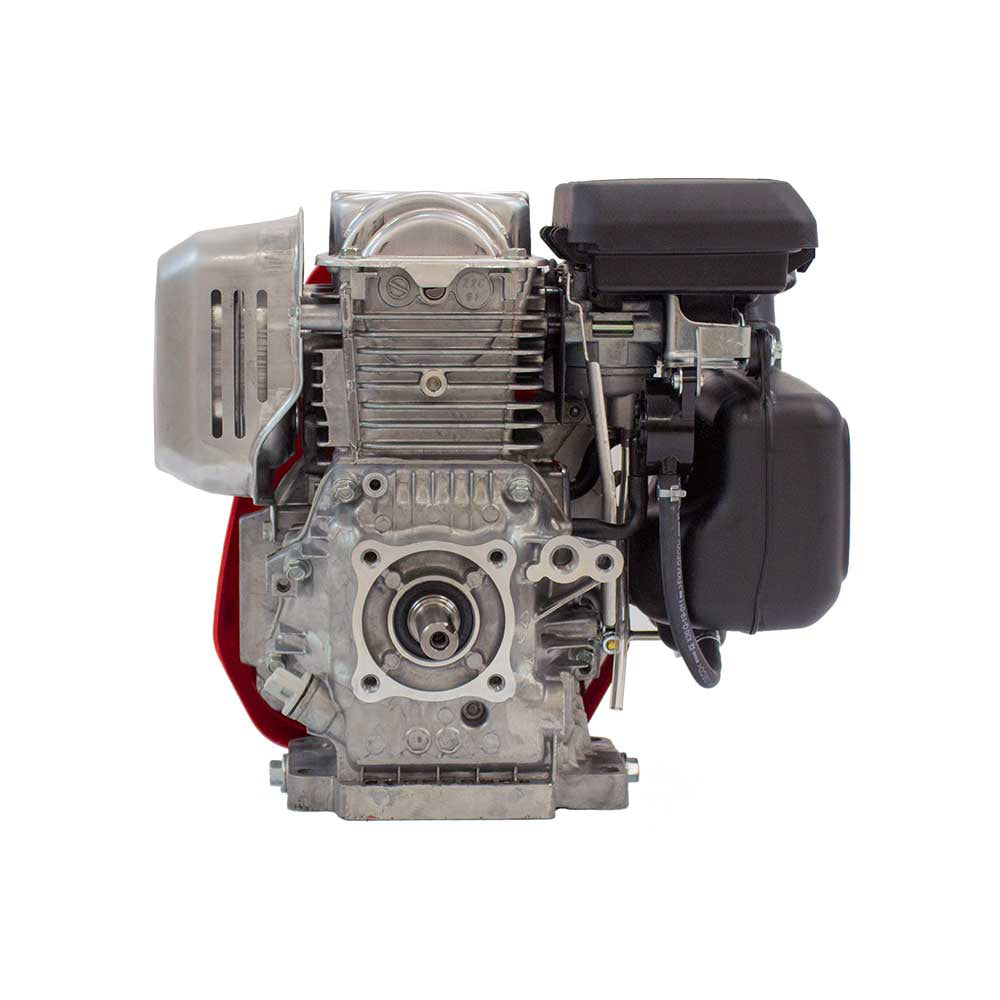

The GS190 offers the best of two worlds. Higher durability, with features like a cast iron cylinder liner and three-piece oil control. And the benefits of a lightweight, compact, quiet OHC design. It's an excellent choice for demanding homeowner application.
| Equipment Type | Engine (Horizontal) |
| Air Cleaner Type | Dry (Paper) |
| Bearing Type | Ball |
| Bore | 2.7-In. |
| CARB Approval For California | No |
| Carburetor | Butterfly Float |
| Choke Control | Manual |
| Compression Ratio | 8.5:1 |
| Cooling System | Air Cooled |
| Crankshaft | Q-Type |
| Crankshaft Diameter | .75 In. (3/4) |
| Crankshaft Length | 2.43-In. |
| Crankshaft Output | Horizontal |
| Cylinder Bore | Cast Iron |
| Cylinders (Qty.) | 1 |
| Engine Displacement | 187 cc |
| EPA Compliant | Yes |
| Fuel Filter | In-Line |
| Fuel Tank & Capacity | Yes, 1.9 Qt |
| Governor System | Centrifugal Mechanical |
| Ignition System | Transistorized Magneto |
| Item No_ | GS190LAXQHAF |
| Low Oil Alert | No |
| Low Oil Shutdown | No |
| Lubrication System | Splash |
| Max. RPM | 3600 |
| Mounting Base Length | 6.375-In. |
| Mounting Base Width | 2.95 to 3.46-In. |
| Mounting Bolt Circle | 3.625-In. |
| Muffler Included | Yes |
| Net Power Output | 5.2 HP |
| Net Torque | 8.3 Ft-Lbs. |
| Oil Capacity | 0.61 Qt |
| Product Dimensions L X W X H - In. (mm) | 13.6-In. (345mm) X 14.5-In. (369mm) X 13.5-In. (343mm) |
| Product Weight | 38 |
| PTO Height | 4.17-In. |
| Starter Type | Recoil |
| Stroke | 2 In. |
| Throttle Control | Fixed |
