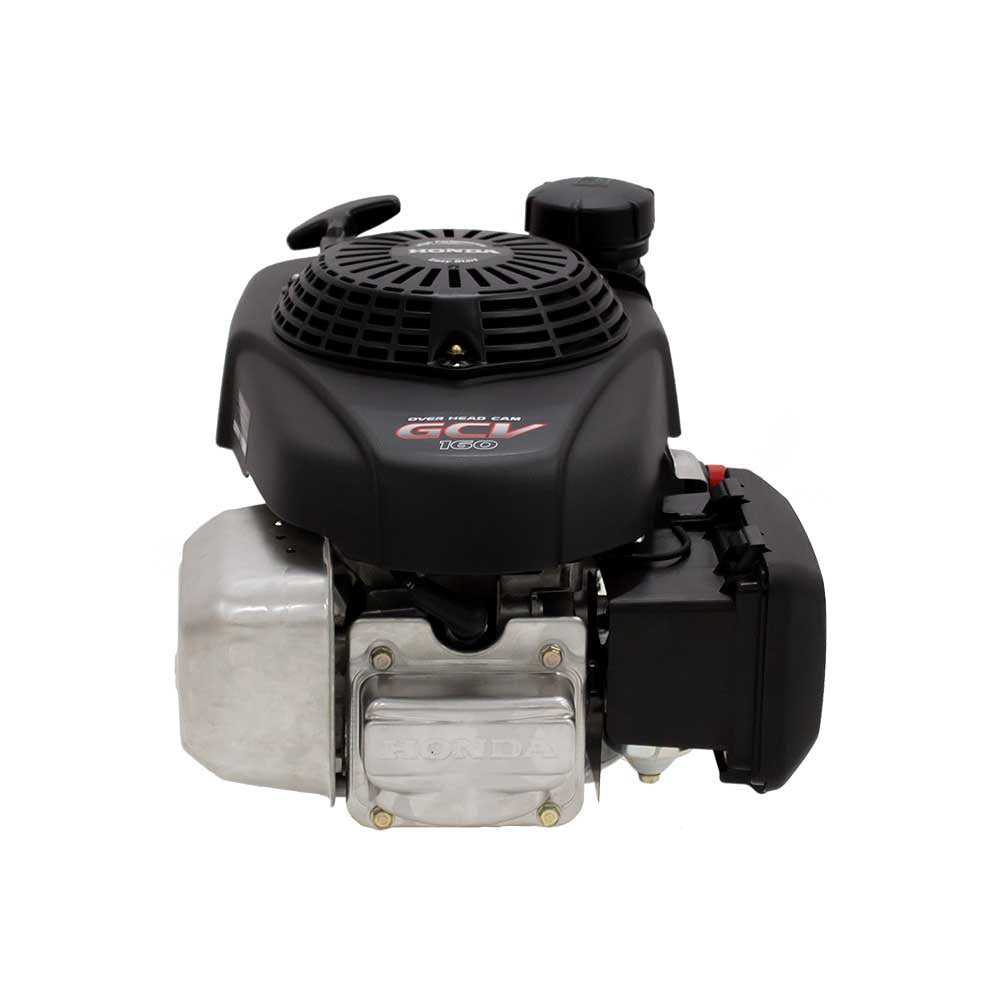

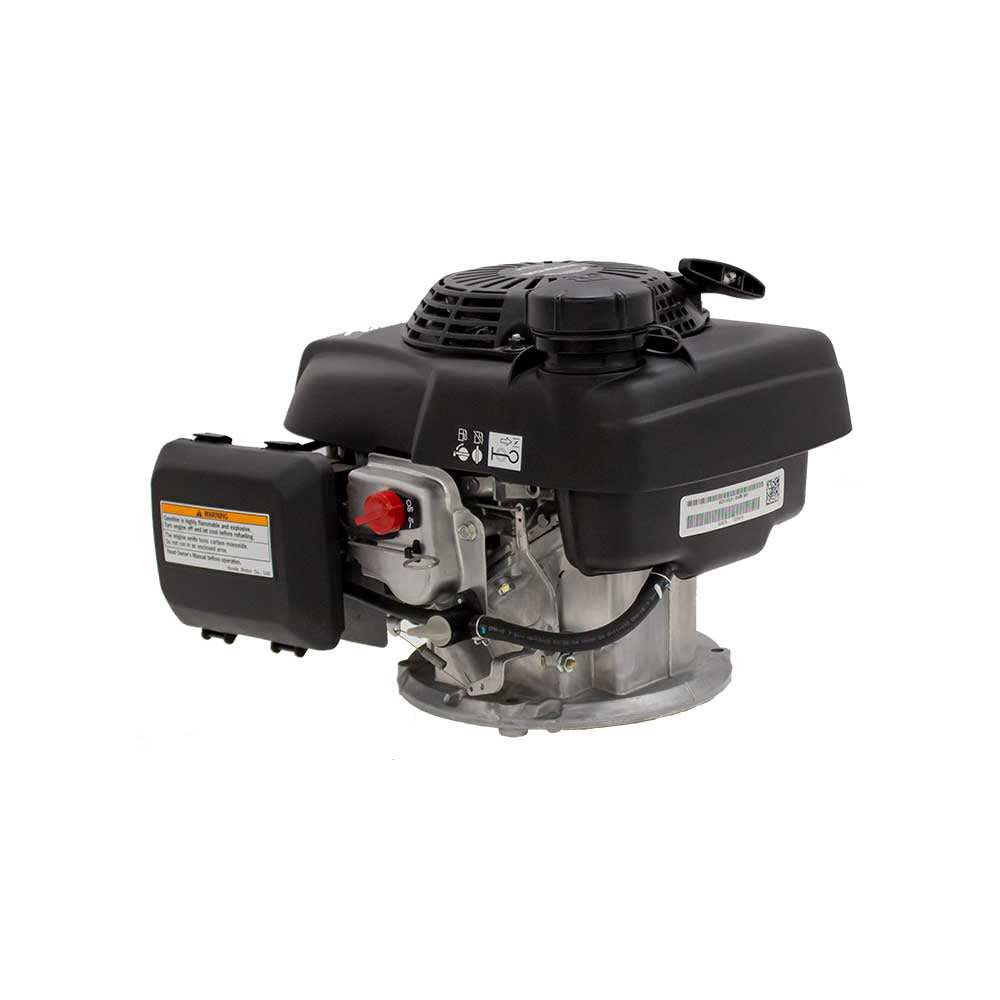

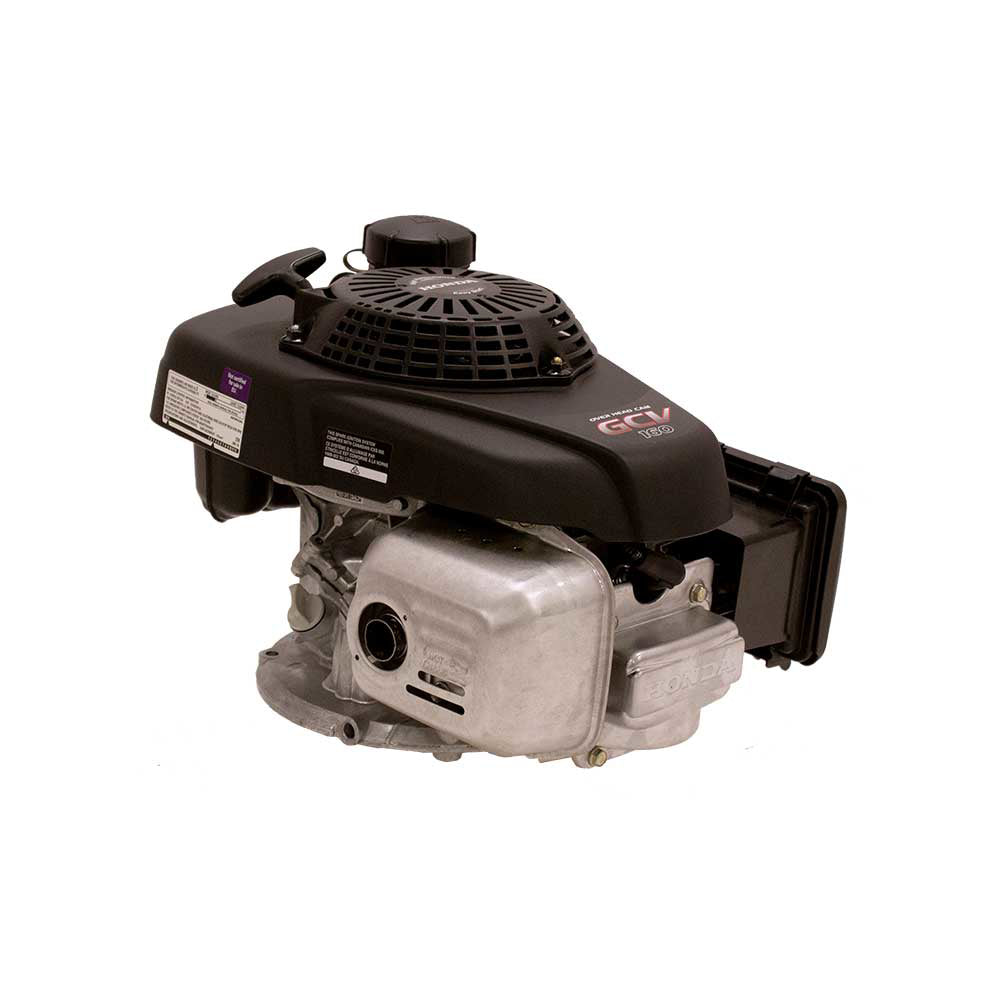

Honda | GCV Series | 160cc | 7/8 In. X 1.87 In. PTO | Recoil | Vertical | Heavy Flywheel
$250.00
Regular price
$250.00
Sale price
$250.00
Regular price
Unit price
per
Shipping calculated at checkout.
GCV160LA1G5BR-BLK
Couldn't load pickup availability
Sorry, it's out of stock.
But we can let you know when it's back in.
Sold out
Honda GCV engines offer a quiet, yet powerful and lightweight combination for a variety of demanding applications. Ideal for residential mowers and pressure washers, these engines pack a punch.
| Equipment Type | Engine (Vertical) |
| Air Cleaner Type | Dry (Paper) |
| Bearing Type | Standard |
| Bore | 2.5-In. |
| CARB Approval For California | No |
| Carburetor | Float |
| Choke Control | Remote Rod |
| Compression Ratio | 8.5:1 |
| Cooling System | Air Cooled |
| Crankshaft | G5-Type |
| Crankshaft Diameter | .875 In. (7/8) |
| Crankshaft Length | 1.37-In. |
| Crankshaft Output | Vertical |
| Crankshaft Rotation (From PTO Shaft Side) | Counterclockwise |
| Cylinder Bore | Aluminum Alloy |
| Cylinders (Qty.) | 1 |
| Engine Displacement | 160 cc |
| EPA Compliant | Yes |
| Fuel Filter | In-Line |
| Fuel Tank & Capacity | Yes, 0.98 qt |
| Governor System | Centrifugal Mechanical |
| Ignition System | Transistorized Magneto |
| Item No_ | GCV160LA1G5B-BLK |
| Lubrication System | Splash |
| Max. RPM | 3600 |
| Mounting Bolt Circle | 8.5-In. |
| Muffler Included | Yes |
| Net Power Output | 4.6 HP |
| Net Torque | 6.9 Ft-Lbs. |
| Oil Capacity | 0.58 qt |
| Product Dimensions L X W X H - In. (mm) | 14.37 X 13 X 13.81-In. |
| Product Weight | 27 |
| Starter Type | Recoil |
| Stroke | 2 In. |
| Throttle Control | Fixed |
