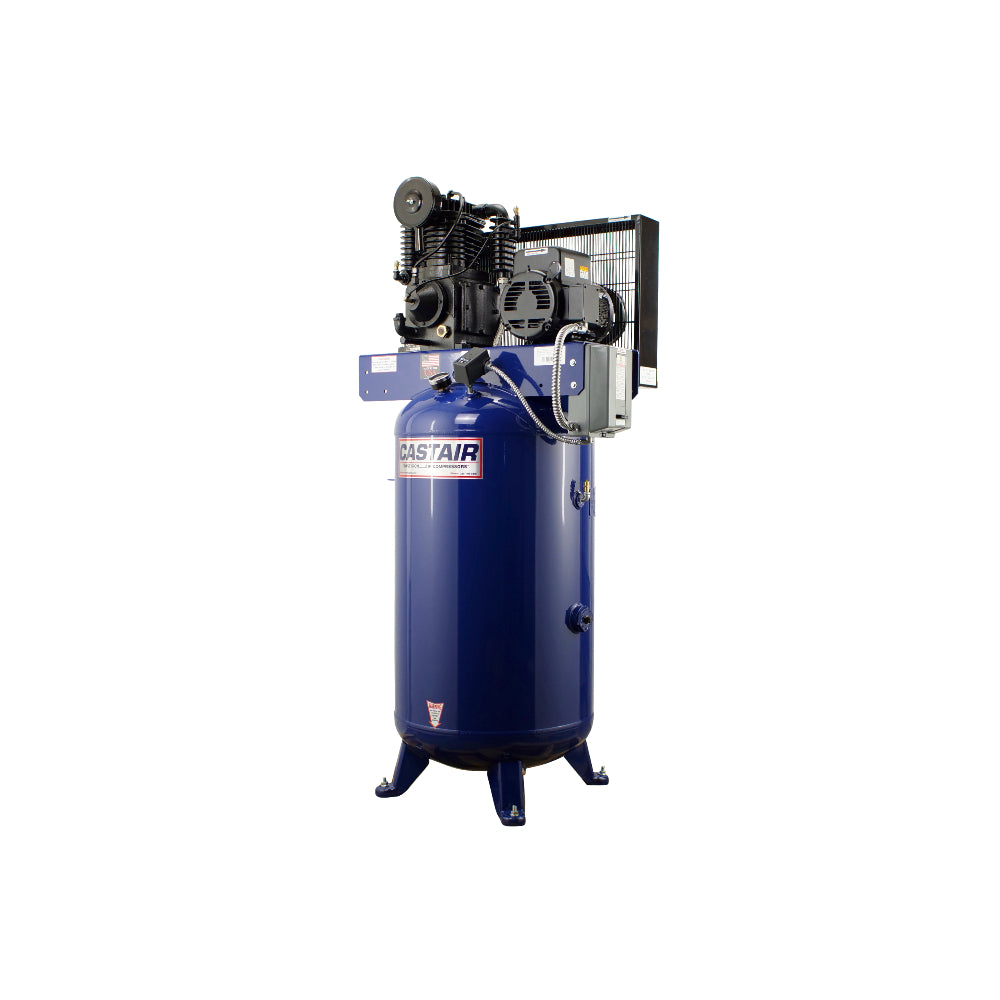

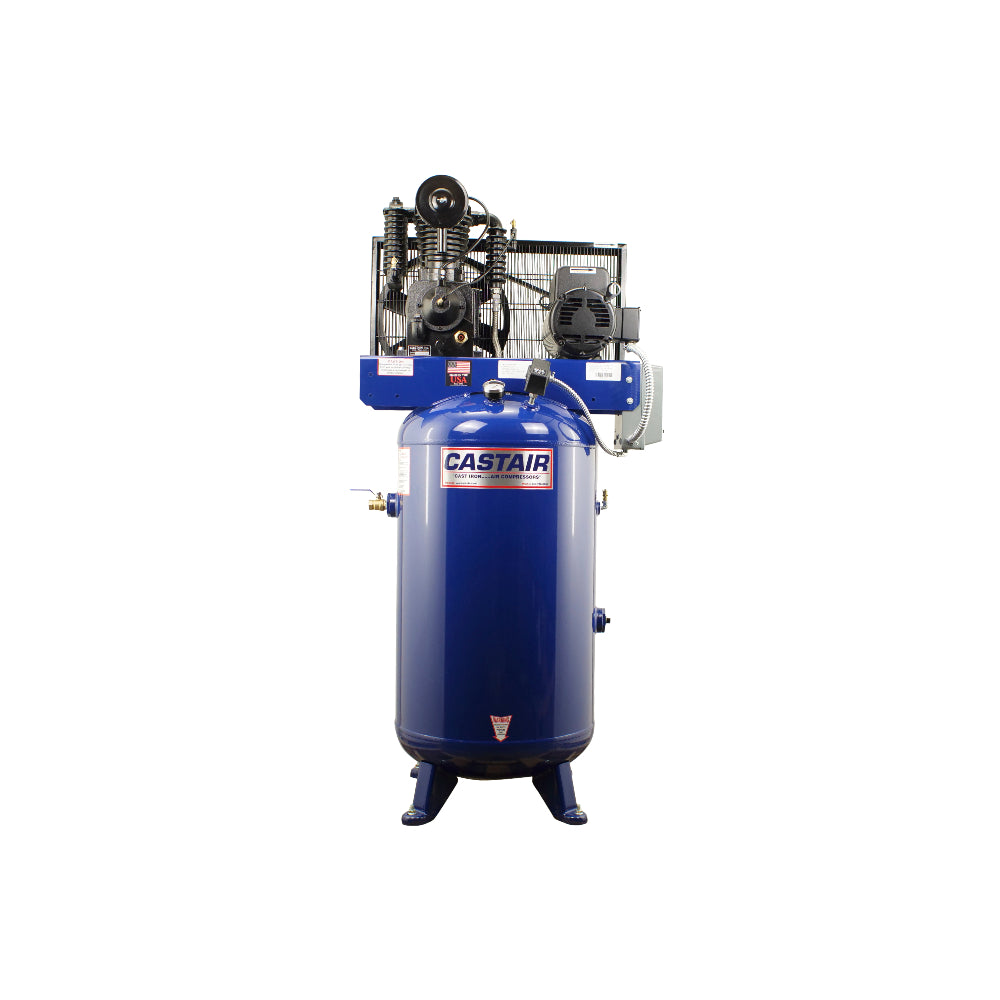

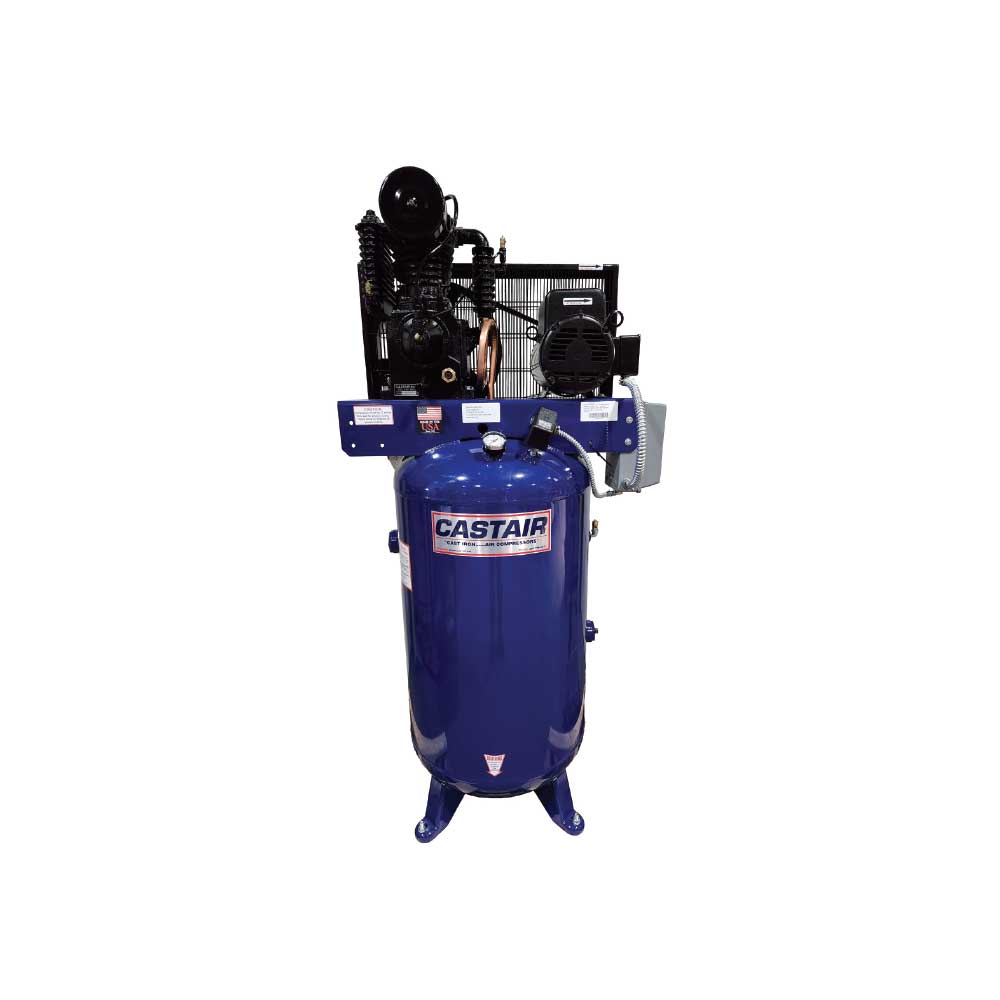

CASTAIR Compressor | Industrial Series | 80 Gal. Vertical | 5HP 1-Phase 230V | 17.5 CFM@ 175 PSI

The CASTAIR 5HP industrial series vertical air compressor features truly impressive build quality that's a cut above the competition. This compressor uses a two stage cast iron pump, running with oil lubrication at a low 767 RPM to make the machine quieter, with longer life than oil-less compressors. The pump features steel connecting rods, with automotive type rod insert bears at the crankshaft, with bearings at the wrist pin for long-term reliability. For ease of maintenance and reliability, the pump also has disc and spring valves, as well as a centrifugal unloader for loadless startup. The ASME-compliant tank has an 80 gallon capacity, four legs for stability, and is made in the USA. The motor is made in USA by Baldor, running at 1725 RPM, with a full 15% service factor.

• 767 RPM, oil-lubed cast iron pump for quiet operation and long service life
• 22.0 CFM at 0 PSI, 17.5 CFM at 175 PSI
• Tapered roller bearings at both ends of crankshaft for superior support & less friction
• Precision steel connecting rods with automotive type rod insert bearings at crankshaft, and bearings at wrist pin for long service life and reliability
• Disc and spring valves for ease of service, efficiency, and maximum reliability
• Centrifugal unloader for loadless startup every operation
• Automotive filters with paper element provide clean intake air and quiet operation
• Easy to read sight glass to ensure proper oil level at a glance
• 80 gallon ASME-compliant powder coated tank with ASME safety valves
• Rigid metal guard keeps belt totally enclosed during operation
• Copper or stainless braided discharge tube for strength and increased heat dissipation
• Heavy duty made in USA Baldor motor runs at 1725 RPM with full 15% service factor
• Quality pressure switch and magnetic starter mounted and wired from factory
• 30A breaker required for operation
