CASTAIR

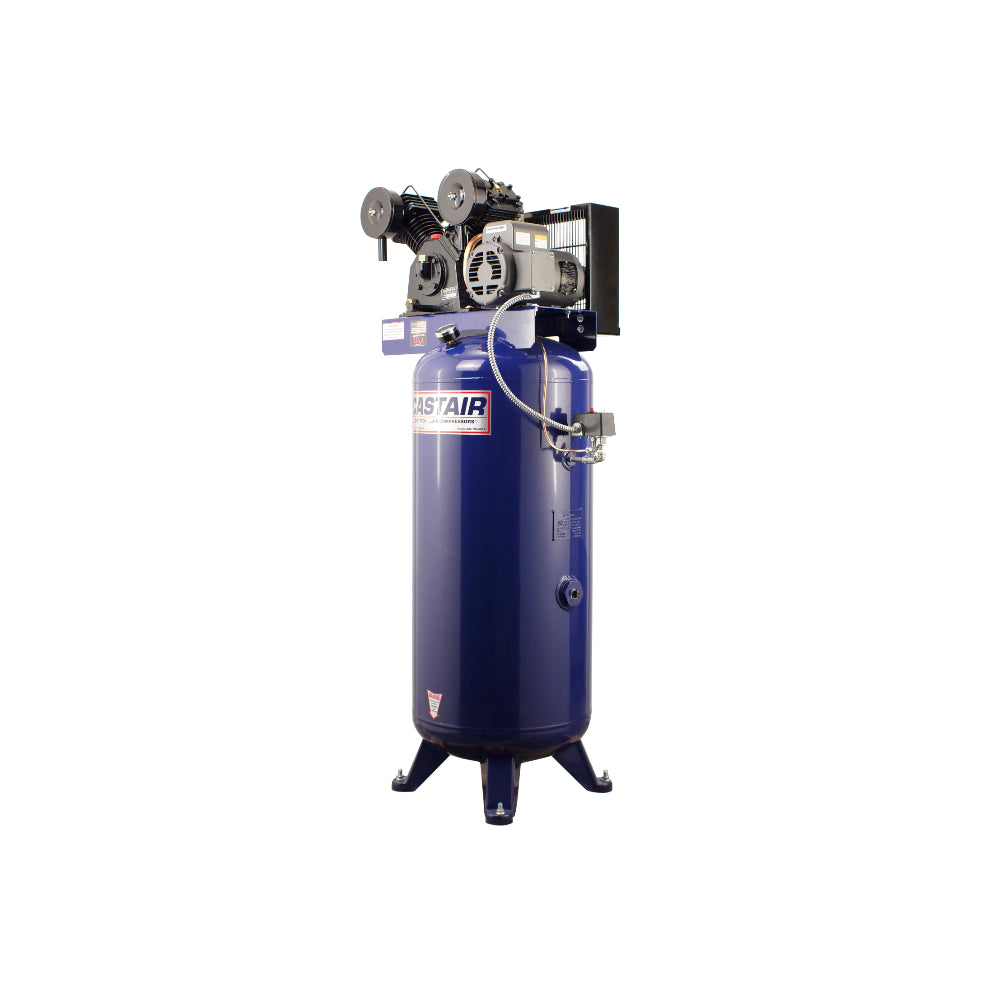

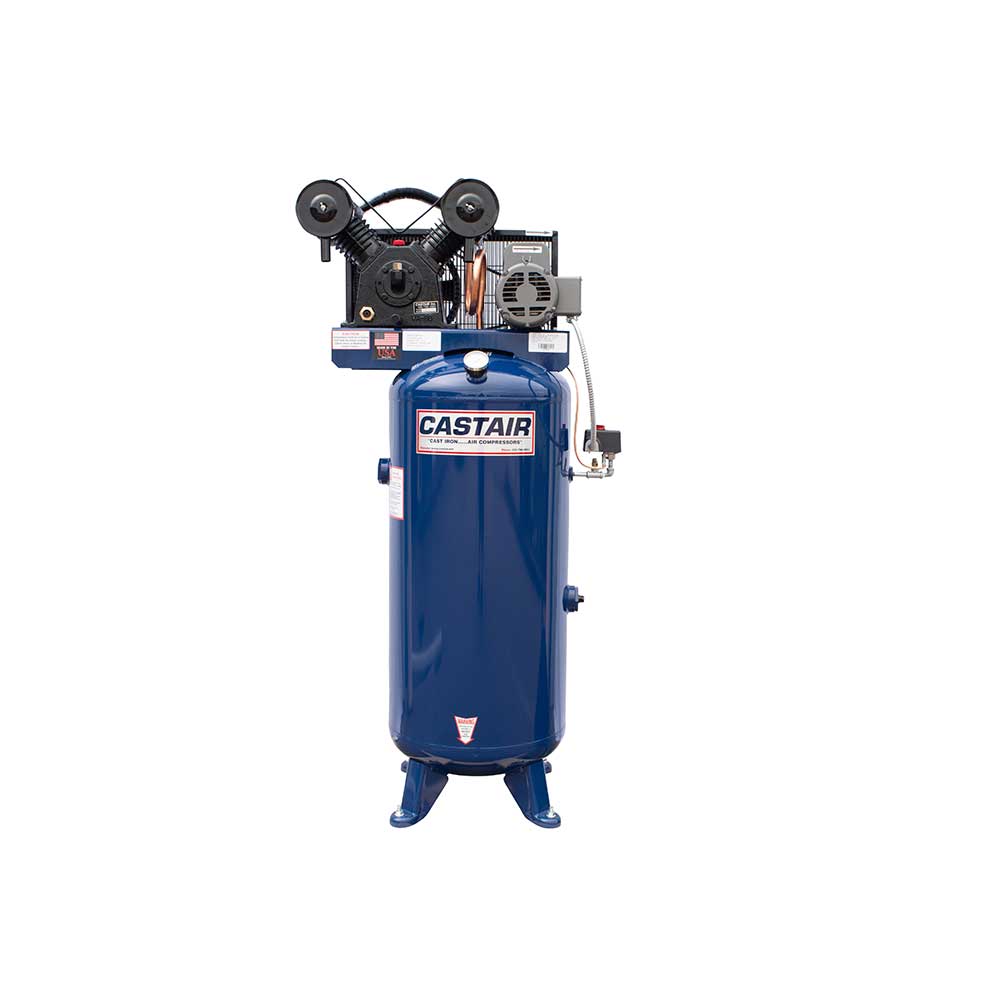

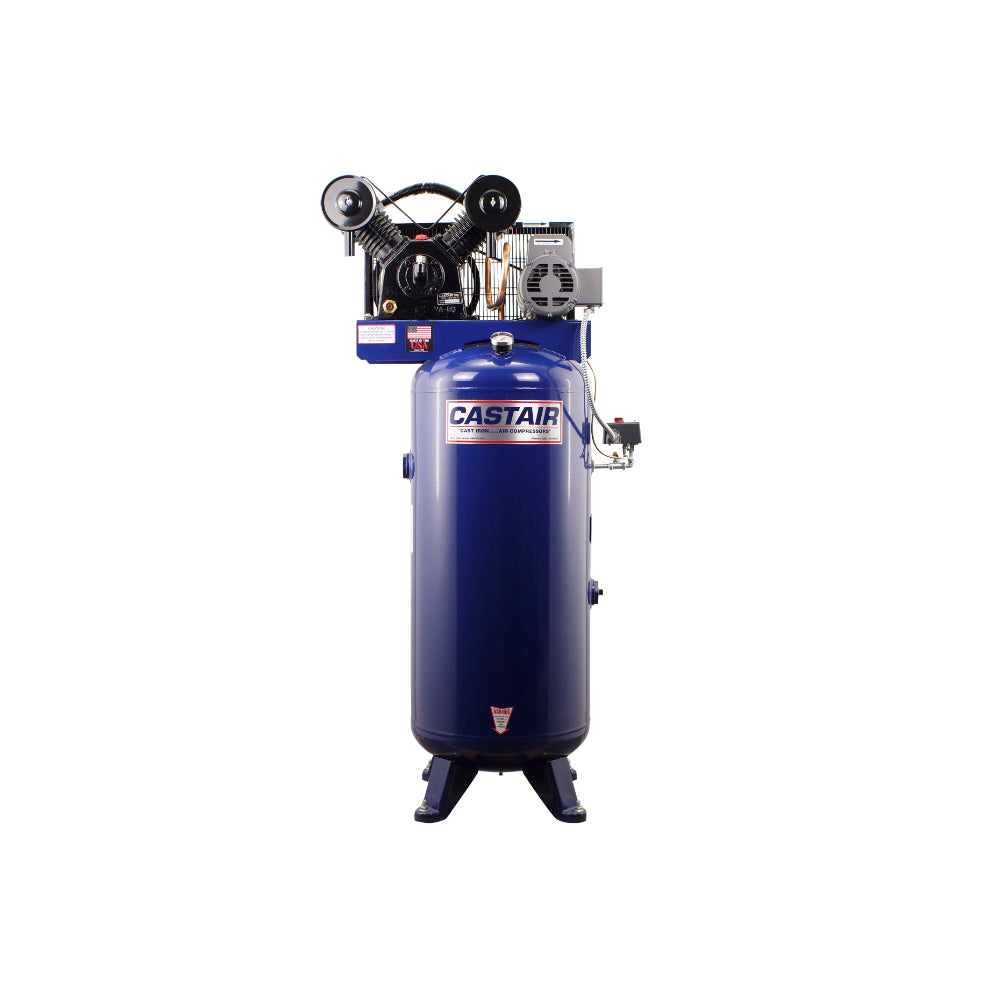

CASTAIR Compressor | Commercial Series | 60-Gal. Vertical | 5HP 1-Phase 230V | 18.3CFM @ 100PSI

$2,919.00
$2,919.00
$2,919.00
Shipping calculated at checkout.

GPE211022

The CASTAIR 5HP commercial series vertical air compressor features truly impressive build quality that's a cut above the competition. This compressor uses a single stage cast iron pump, running with oil lubrication at a low 1088 RPM to make the machine quieter, with longer life than oil-less compressors. The pump features steel connecting rods, with automotive type rod insert bears at the crankshaft, with bearings at the wrist pin for long-term reliability. For ease of maintenance and reliability, the pump also has disc and spring valves. This compressor also has ASME-compliant safety valves installed, and a four-leg, 60 gallon tank ASME-compliant tank. The motor features thermal overload protection, with a full 15% service factor.

  • 1088 RPM, oil-lubed cast iron pump for quiet operation and long service life
  • 23.7 CFM at 0 PSI, 18.3 CFM at 100 PSI
  • Single stage pump - smooth running v-twins for 360 degree cooling around both cylinders
  • Automotive filters with paper element provide clean intake air and quiet operation
  • Tapered roller bearings at both ends of crankshaft for superior support & less friction
  • Precision steel connecting rods with automotive type rod insert bearings at crankshaft, and bearings at wrist pin for long service life and reliability
  • Disc and spring valves for ease of service, efficiency, and maximum reliability
  • Automotive type main ball bearing provide excellent crankshaft support
  • Easy to read sight glass to ensure proper oil level at a glance
  • 60 gallon ASME-compliant powder coated tank - made in USA
  • Rigid metal guard keeps belt totally enclosed during operation
  • Copper discharge tube for strength and increased heat dissipation
  • High quality motor with thermal overload protection and full 15% service factor
  • 30A breaker required for operation
CASTAIR Compressor | Commercial Series | 60-Gal. Vertical | 5HP 1-Phase 230V | 18.3CFM @ 100PSI
